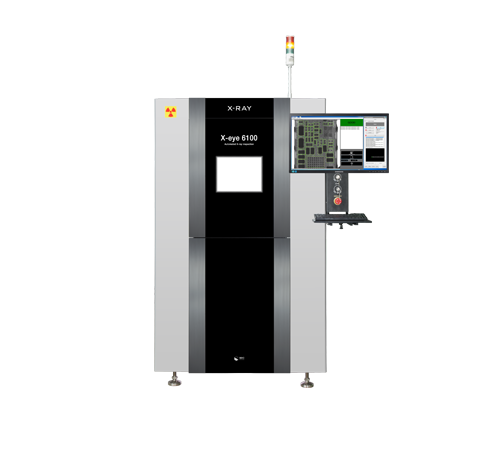

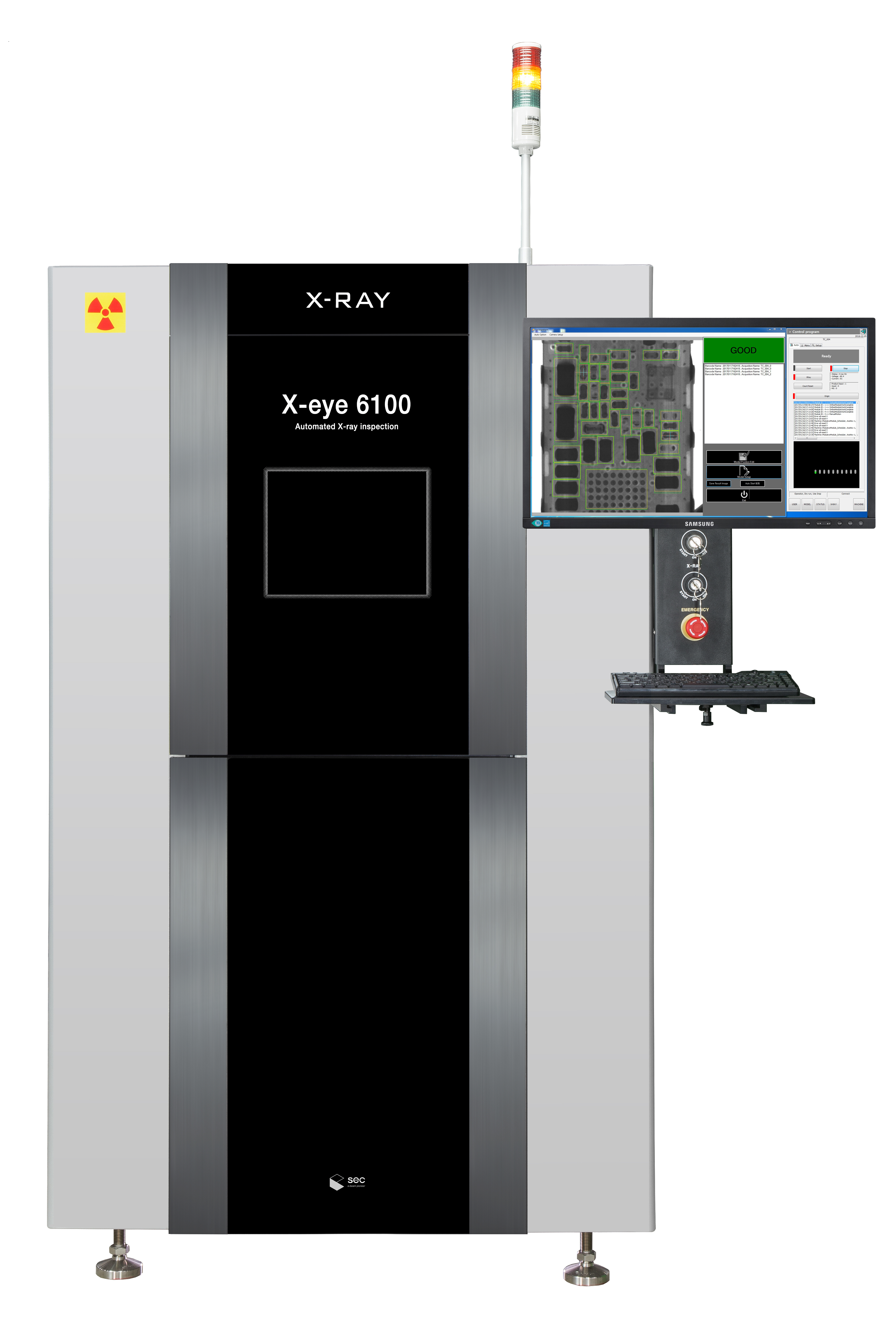

X-eye 6100

Type X-ray machine
Model Xeye 6100
Manufacturer SEC
Origin Korea
Warranty 1 year
Contact 0243.202.300 or 0964.007.001 (Mrs. Thắm)





 X-ray Tube 160 kV / 200 ㎂
 Min. Resolution 5㎛
 Table Size 400 X 400 mm
 AXIS n/a
 Detector 5 inch FPXD
 CT Scan Method Unable CT
 Objects BGA, Chip, QFN, QFP, Battery
 Foot print 1,020 x 1,350 x 1,720 mm
 Weight 1,500kg

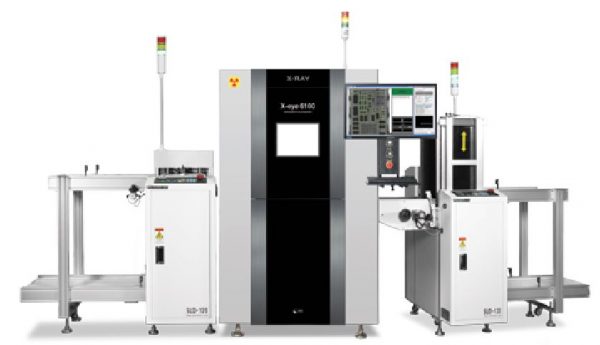

In-Line 2D X-ray Inspection Machine
Automatically In-Line inspect Solder Joint defects of PCBA, and other defects on Hidden Components.
    Able to be customized regarding Application by users setting ROIs.
    Especially, area type image scanning can gain high resolution results fast.

SMT Chip BGA (Short, Miss align, Missing)



Battery Inspection



Applications
