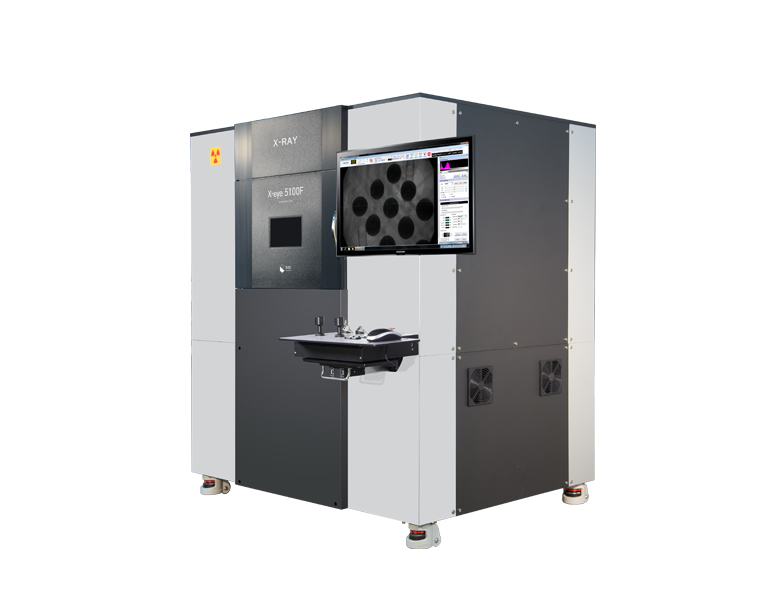

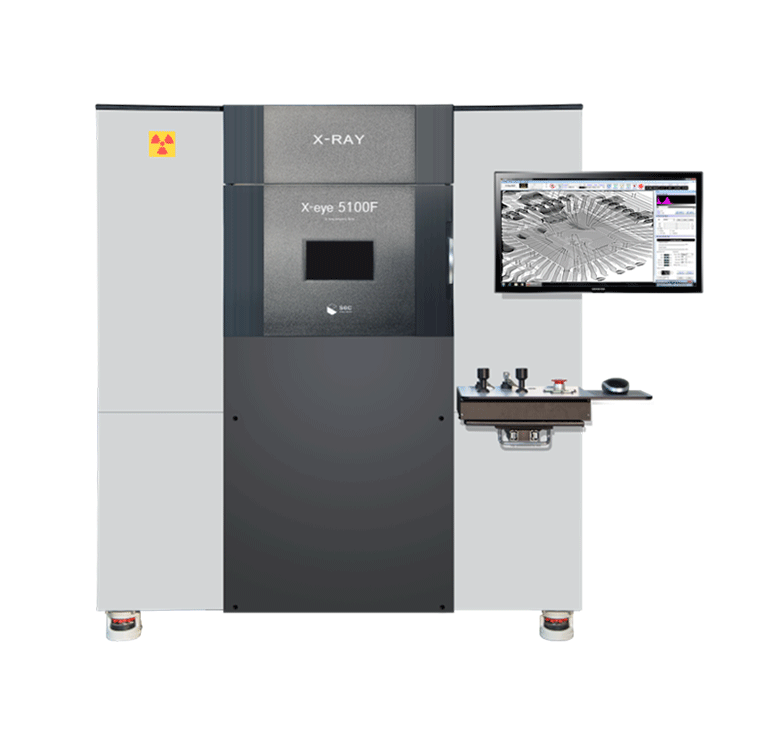

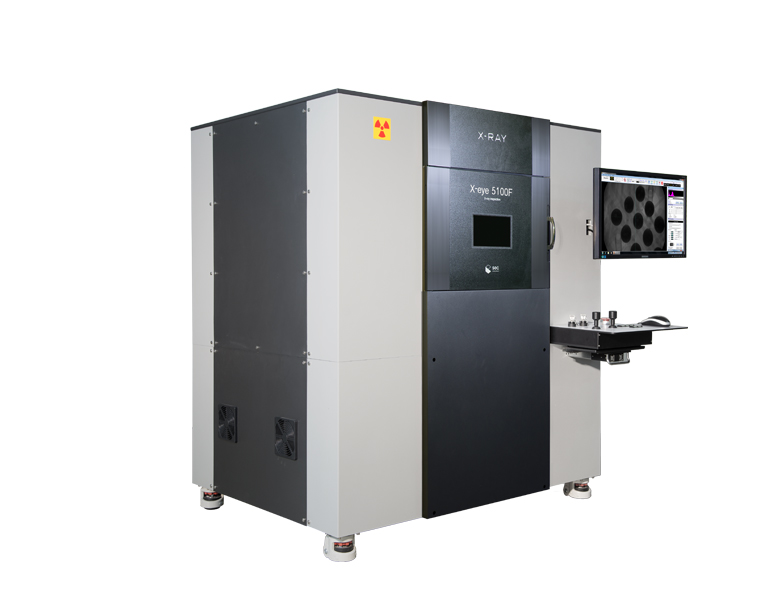

X-eye 5100 Series

Type X-ray machine
Model Xeye 5100F/Xeye 5100H/Xeye 5130FSL
Manufacturer SEC
Origin Korea
Warranty 1 year
Contact 0243.202.300 or 0964.007.001 (Mrs. Thắm)



 X-ray Tube 100 kV / 200 µA (option 130 kV / 200 µA)
 Min. Resolution 5 µm
 Table Size 460 X 340 mm (option 550 X 550 mm)
 AXIS X, Y, Z, Tilt (±50º)
 Detector 2.5 inch FPXD or 5 inch FPXD
 CT Scan Method Unable CT
 Foot print 1,270(W) x 1,025(D) x 1,460(H)mm
 Weight 720kg







Practical X-ray Inspection System
100kV ~ 130kV Micro-focus Closed tube and high-definition Flat Panel Detector are installed and high-resolution image can be gained.
Customer convenience is primarily considered in operation and maintenance of the product.
Customization is available because it is specially designed to be added up any necessary functions depending on customer needs with reasonable prices.

  • Non-destructive analysis of semiconductor, SMT, and electron/electric components
  • Inspection S/W is able to be installed for mass production of SMT and electron/electric components
  • Various convenient functions – Easy of use

QFP



Camera Module



Applications
