  • SZ6745-STL10

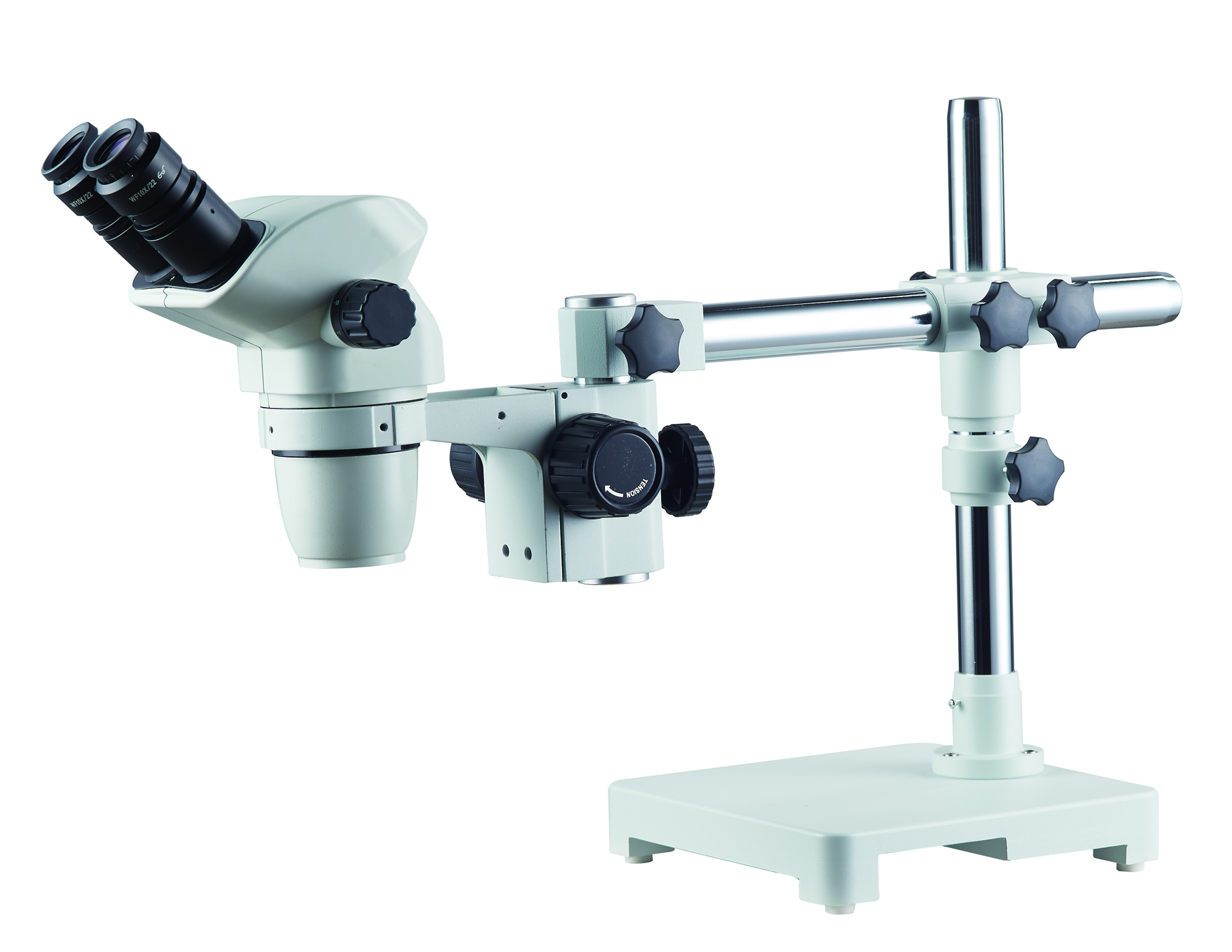

SZ6745-STL1

Magnification 0.67x - 4.5x
Eyepiece 10x/22mm
Base Size 230x230x40mm

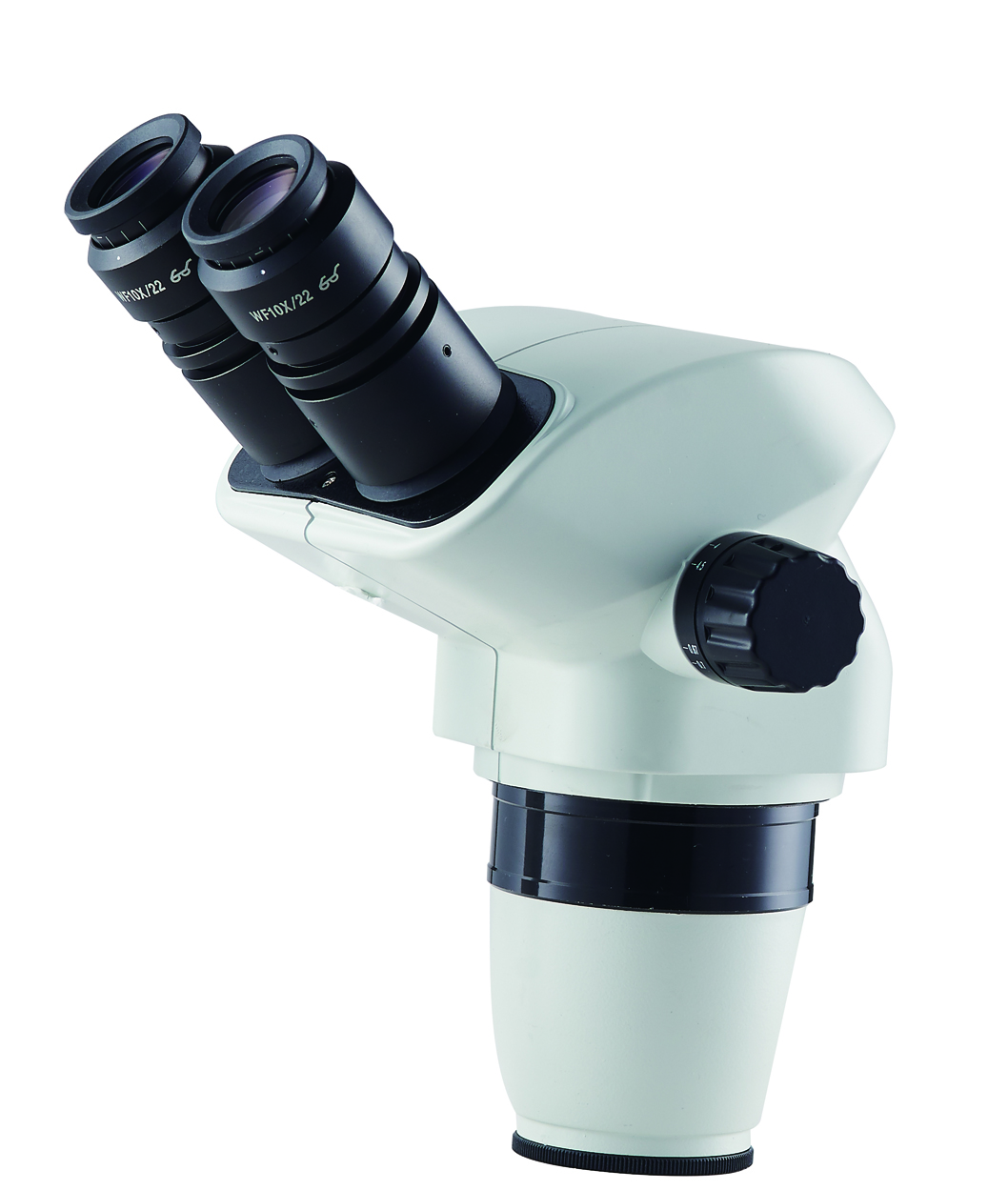

SZ6745 Zooming  Body

- Binocular head, with one pair of WF10X22mm eyepiece

- Magnification from 6.7X to 45X



Specification

Zoom Range  0.67x - 4.5x
Zoom Ratio  01:06.7
Total Magnification  6.7 - 45x (Standard), 3.35 - 270x with optional lens
Working Distance 105mm (Standard), 26 - 287mm with optional lens
Interpupilary Distance 54 - 75mm
Diopter Adjustment +/-5 diopters
Binocular Tube  With and inclination of 45° for greater ease of observation
Binocular Body Cane be rotated a full 360° and locked in any position desired



STL1 Universal Stand

Vertical Post 380mm Dia.32mm
Horizontal Moving 235mm
Base Size 230x230x40mm

Using with A1 Focusing Mount

This stand can expand the operation scope
