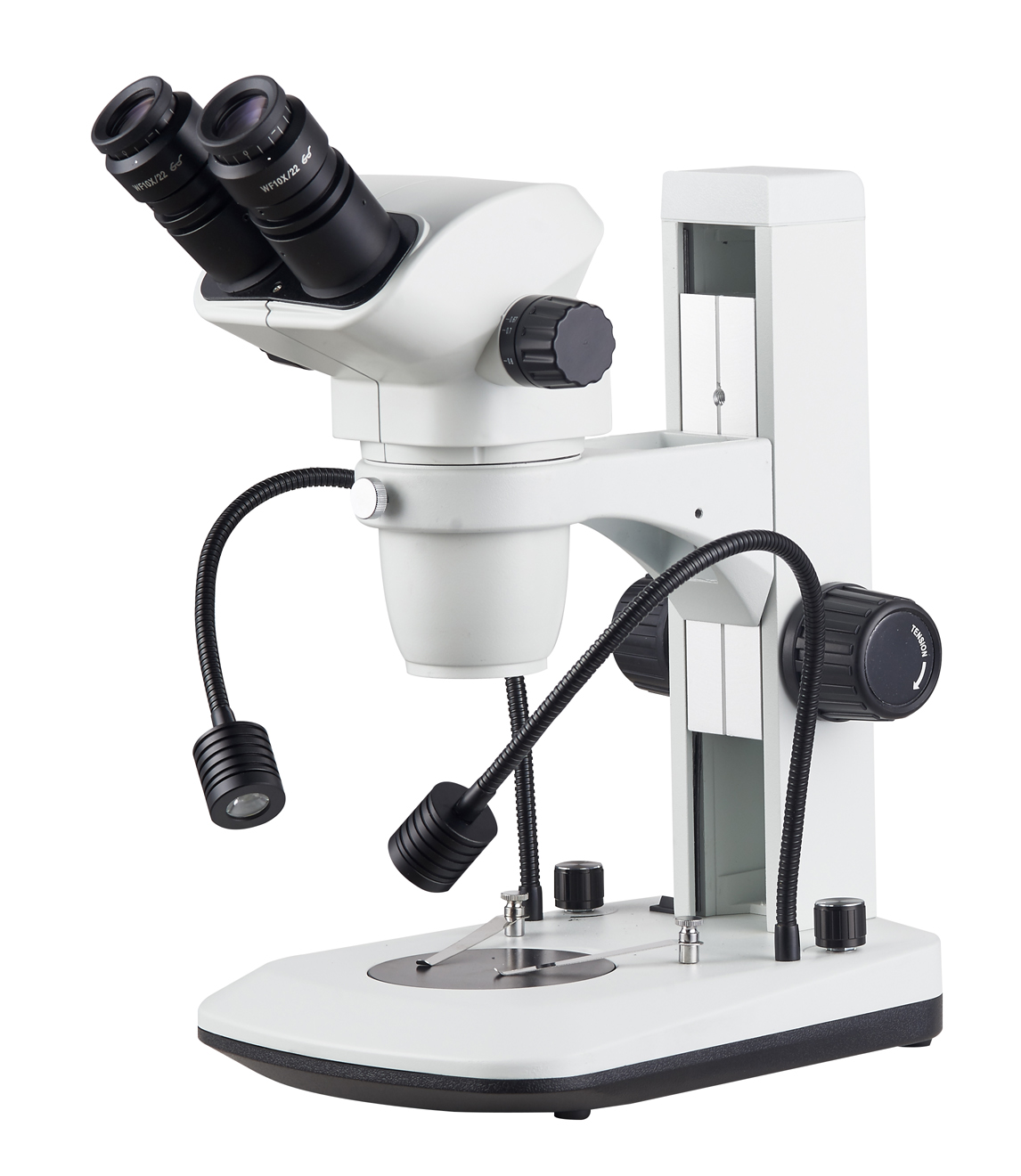

SZ6745-B1
Detail View →
SZ6745 Zooming Body
- Binocular head, with one pair of WF10X22mm eyepiece
- Magnification from 6.7X to 45X
Specification
| Zoom Range | 0.67x - 4.5x |
| Zoom Ratio | 01:06.7 |
| Total Magnification | 6.7 - 45x (Standard), 3.35 - 270x with optional lens |
| Working Distance | 105mm (Standard), 26 - 287mm with optional lens |
| Interpupilary Distance | 54 - 75mm |
| Diopter Adjustment | +/-5 diopters |
| Binocular Tube | With and inclination of 45° for greater ease of observation |
| Binocular Body | Cane be rotated a full 360° and locked in any position desired |
B9LS Track Stand
| Vertical Height | 300mm |
| Focusing Distance | 106mm |
| Mounting Size |
Ø76mm |
| Input Power | 110v-240v |
| Gooseneck LED | Illumination with an independent control |
| Base Size | 205x275x40mm , with Ø95mm B/W Plastic & Perspex Plate and Paired Clips |
