  • SZ6745-B50

SZ6745-B5

Magnification 0.67x - 4.5x
Eyepiece 10x/22mm
Base Size 380x260x20mm
Contact 0243.202.3000 or 0964.007.001 (Mrs. Thắm)

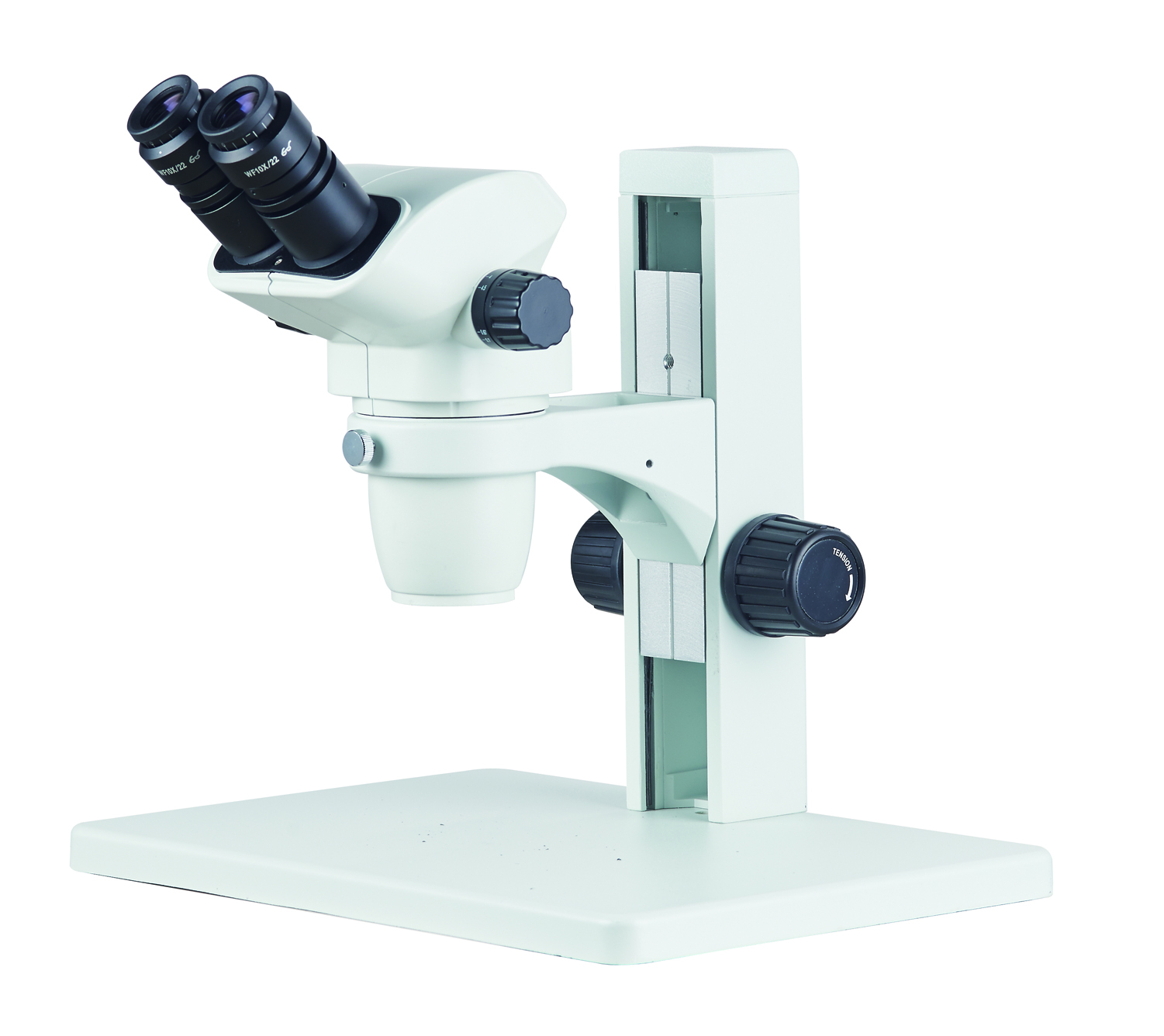

SZ6745- B5 Industrial Stereo Microscope

SZ6745-B5 is the large stand - industrial stereo microscope with magnification 6.7x to 45x. The eyepieces are WF10x/22mm and base size reaches 380x260x20mm

See more: Stereo Microscope SZ6745-J2

SZ6745 Zooming  Body

- Binocular head, with one pair of WF10X22mm eyepiece

- Magnification from 6.7X to 45X



Specification

Zoom Range  0.67x - 4.5x
Zoom Ratio  01:06.7
Total Magnification  6.7 - 45x (Standard), 3.35 - 270x with optional lens
Working Distance 105mm (Standard), 26 - 287mm with optional lens
Interpupilary Distance 54 - 75mm
Diopter Adjustment +/-5 diopters
Binocular Tube  With and inclination of 45° for greater ease of observation
Binocular Body Cane be rotated a full 360° and locked in any position desired

B5 Large Stand

Comparison: Stereo Microscope SZ6745-J1

Vertical Height 300mm
Focusing Distance 106mm
Mounting Size

Ø76mm

Base Size 380x260x20mm
