SZ6745-B9L

SZ6745-B9L

Eyepiece	WF10x/WF15x/WF20x/WF25x/WF30x
Stand	A wide variety of stands for option . Refer to P.15-P.18
Illumination	Fluorescent Ring Light , LED Ring Light , Halogen Lamp . Refer to P.23
For Trinocular Body	Phototube, C-Mount for Camera . Refer tp P.22
Contact	0243.202.3000 or 0964.007.001 (Mrs. Thắm)

Overview

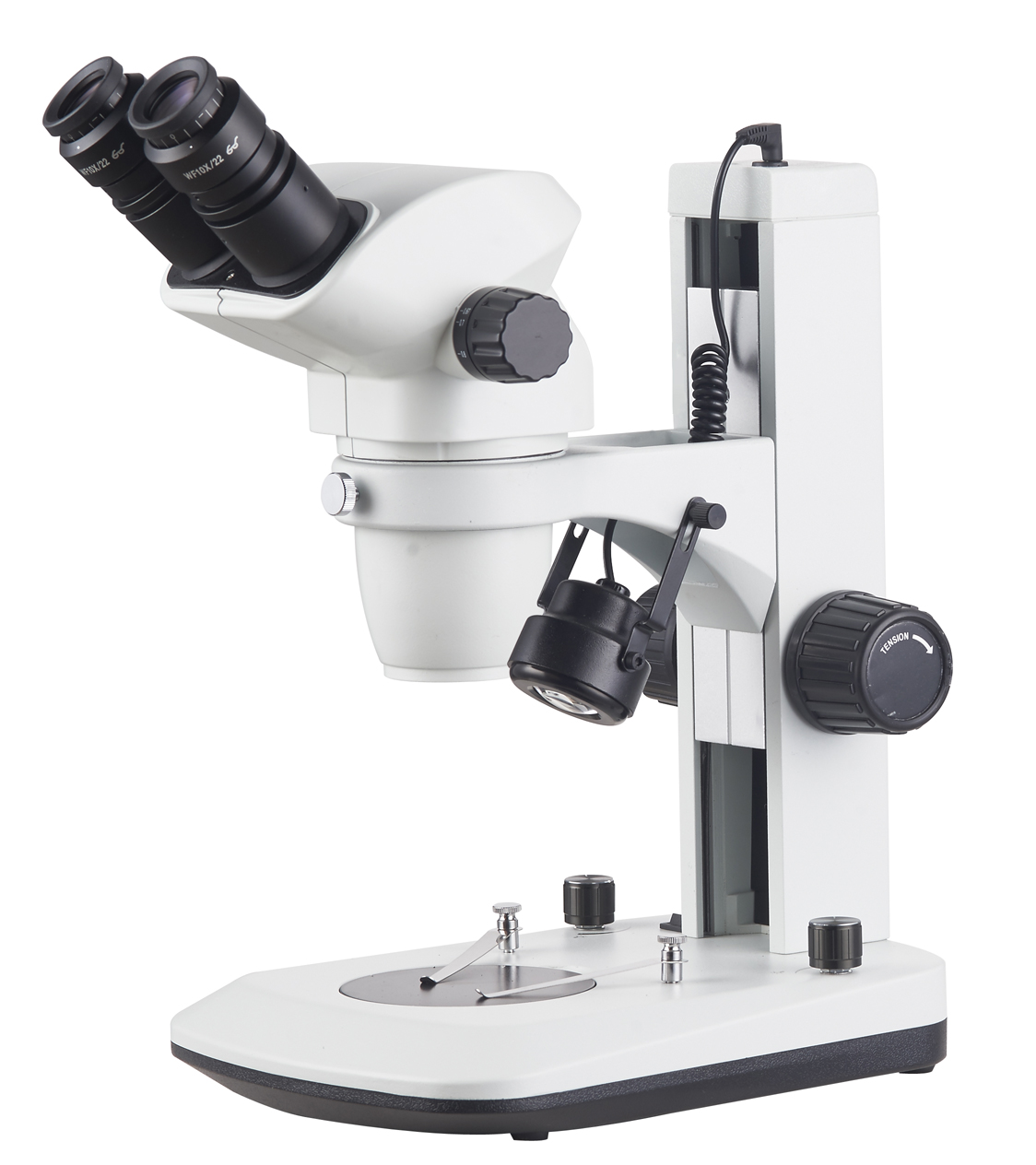

SZ6745-B9L Industrial Stereo Microscope

SZ6745-B9L is the industrial stereo microscope with magnification 6.7x to 45x. A wide range of eyepices WF10x/WF15x/WF20x. Base size reaches 205x275x40mm.

See more: Stereo Microscope SZ6745-J2

SZ6745 Zooming Body :

- Binocular head, with one pair of WF10X22mm eyepiece

- Magnification from 6.7X to 45X

Specification

Zoom Range	0.67x - 4.5x
Zoom Ratio	01:06.7
Total Magnification	6.7 - 45x (Standard), 3.35 - 270x with optional lens
Working Distance	105mm (Standard), 26 - 287mm with optional lens
Interpupilary Distance	54 - 75mm
Diopter Adjustment	+/-5 diopters
Binocular Tube	With and inclination of 45° for greater ease of observation
Binocular Body	Cane be rotated a full 360° and locked in any position desired

B9L Track Stand

Comparison: Stereo Microscope SZ6745-J1

Vertical Height	300mm
Focusing Distance	106mm
Mounting Size	Ø76mm
Input Power	110v-240v
Top and Bottom LED	Illumination with an independent control
Base Size	205x275x40mm , with Ø95mm B/W Plastic & Perspex Plate and Paired Clips
