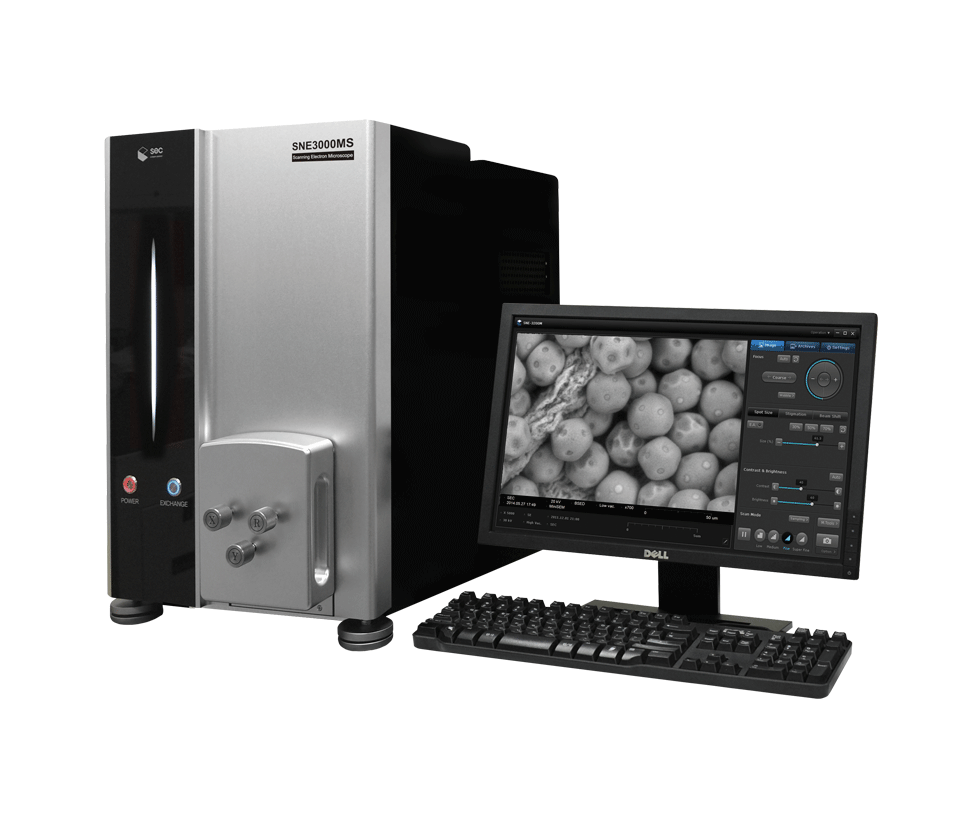

SNE-3000MS

SNE-3000MS is one of the best Scanning electron microscope (SEM) that is applicable in various industries. Magnification up to 60.000x, resolution: 15nm

Type

Scanning Electron Microscope (SEM)

Model

SNE-3000MS

Manufacturer

SEC

Origin

Korea

Warranty

1 Year

Contact

0243.202.3000 or 0964.007.001

Catalogue

SNE-3000MS

The standard of Table-top SEM

For more details, visit SNE-3000MS

Performance

15nm 60.000X SE Image

The most appropriate Table-top SEM for the surface inspection with 10,000x of magnification which is main inspection range by SEM
Entry-level Table-top SEM with 15nm resolution & 60,000x magnification

Compare: SNE-4500M Plus

SE (Secondary Electron)

- Create images with the height level information. Mostly used for surface inspection

[caption id="attachment_3456" align="alignnone" width="1000"]Hình ảnh dưới Kính Hiển Vi Điện Tử Quét Bề mặt pin được kiểm tra dưới kính hiển vi điện tử quét SEM[/caption]

Convenience

Stage System
X,Y,R (3-axis)
Beam Shift: 150μm
Auto Setting
Focus, Contrast, Brightness

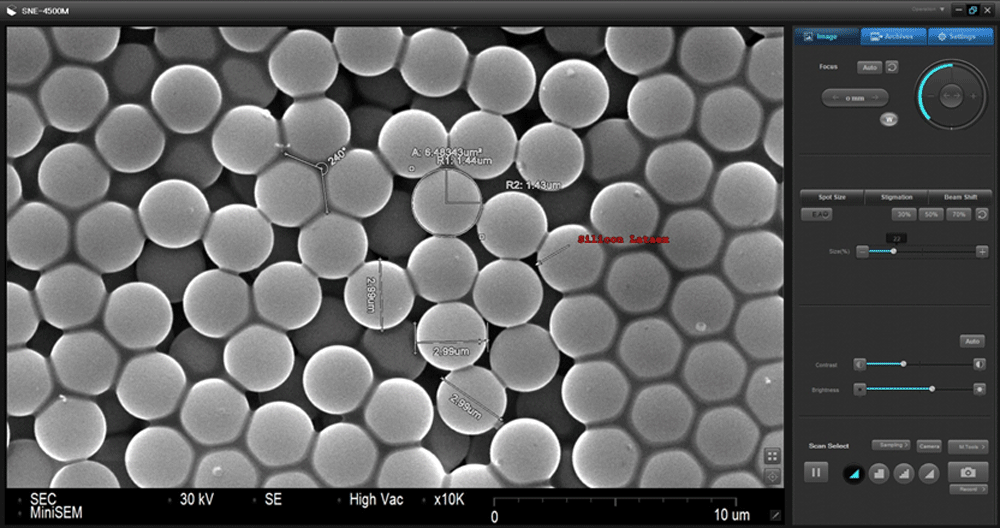

Simple S/W
Convenient Operation

Convenient stage movement by 3-axis and able to operate easily and conveniently with mouse control in U.I
Able to get various analysis results with various scan modes measurement tool

Specification

Resolution 15nm (30kV, SE Image)
Magnification 20x~60,000x
Accelerating Voltage 1~30kV (1/5/10/15/20/30)
Detector Secondary Electron Image(SE)
Electron Gun Pre-centered Tungsten Filament Cartridge
Stage Traverse 3-axis System (X, Y, R – Manual)
X, Y-axis : 40mm / R-axis : 360°
* Image Shift : ±150μm
* Tilt-axis : 0~45° (Option)
Max. Sample Size 70mm in Diameter x 30mm in Height
Automation Function Auto Start, Auto Focus,
Auto Stigmator, Auto Contrast & Brightness
Image Format BMP, JPEG, PNG, TIFF
Vacuum Mode High Vacuum
Vacuum Pump Rotary Pump / Turbo Molecular Pump (Full Automation)
Main Unit 390(W)x380(D)x560(H)mm, 83kg
Controller Unit 390(W)x325(D)x560(H)mm, 37kg
Rotary Pump 400(W)x160(D)x340(H)mm, 24kg

Beside these, SNE-3000MS contains EDS system from Bruker Detector. And to improve the result images, it is also optioned with IO sputter device. The sputter device can make the sample surface more rough to spit out more electron.
