• X-eye 4000A0

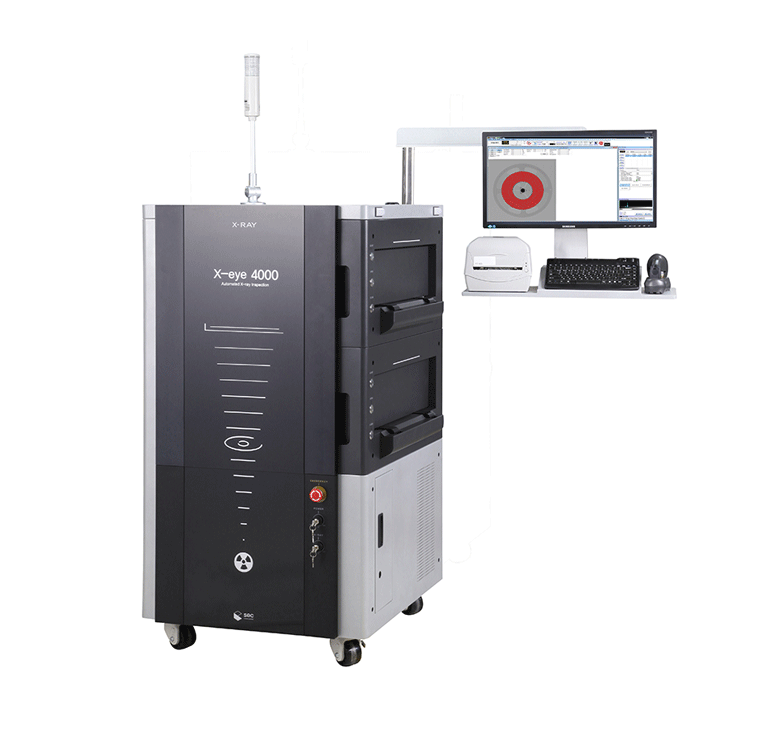

X-eye 4000A

 X-ray Tube 100 kV / 200 µA
 Min. Resolution 5 µm
 Table Size 430 x 430 (mm)
 Z-AXIS Z axis Auto Moving
 Detector 9.4 M Pixel FPD
 Dimension 750(W) x 830(D) x 1,450(H)mm / 700kg
 Cycle Time 9 seconds (Ø180 Reel criterion)
 Counting Accuracy >99.9%
 Scan Rell Diameter Max. Ø400
  • Inspection speed : 9sec (Based on Ø180 reel)
  • Counting Chips and nonstandard components in reel.
  • No need additional Inspection Parameter Setting
