3.1 CMOS

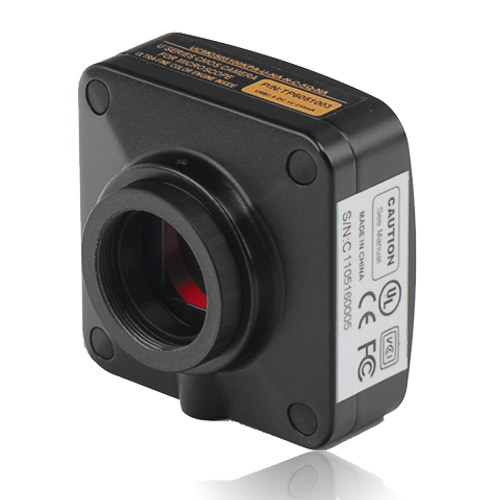

UCMOS Series C-mount USB2.0 CMOS Camera

  • Standard C-Mount camera with Aptina CMOS sensor;
  • With hardware resolution among 0.35M to 14M;
  • Integrated zinc aluminum alloy housing;
  • USB2.0 interface ensuring high speed data transmission;
  • Ultra-Fine color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupView;
  • Providing Windows/Linux/OSX multiple platform SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;

UCMOS camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

UCMOS camera  hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.

UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The UCMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.



UCMOS03100KPA
TP603100A

3.1M/MT9T001(C)

1/2"(6.55x4.92)

3.2x3.2

1.0 V/lux-sec
61dB
43dB

8@2048x1536
22@1024x768
43@680x510

1x1,2x2,3x3

0.244ms~2000ms

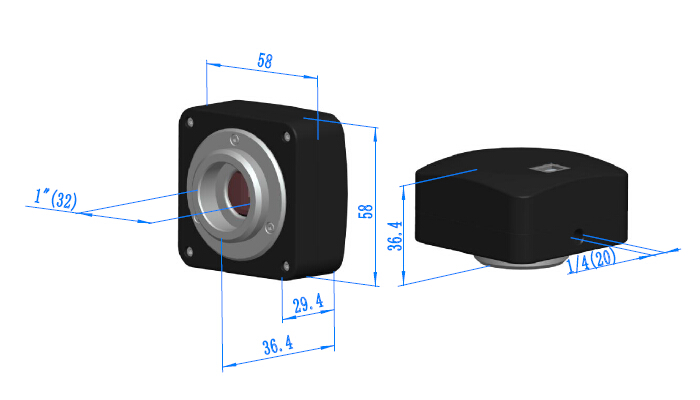

UCMOS Series USB2.0 Camera Dimension

Installation drawings(Click to enlarge). The UCMOS Series USB2.0 Camera  body, made from tough, CNC alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
