XCAM HDMI Camera

XCAM1080PHB/PHD/PHE C-mount HDMI+WIFI CMOS Camera

  • C-mount camera with high sensitivity CMOS sensor
  • Simultaneous HDMI & WIFI output
  • Built-in mouse control
  • Built-in image capture & video record to SD card
  • Built-in camera control panel for mouse control
  • Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions
  • Built-in image & video browsing,display & play
  • With advanced video & image processing application

XCAM is a multiple interfaces (HDMI+WIFI+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.


For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.


For WIFI output, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera.

HDMI Camera and Microscope

ToupTek Photonics | ToupCam ToupTek Photonics | ToupCam

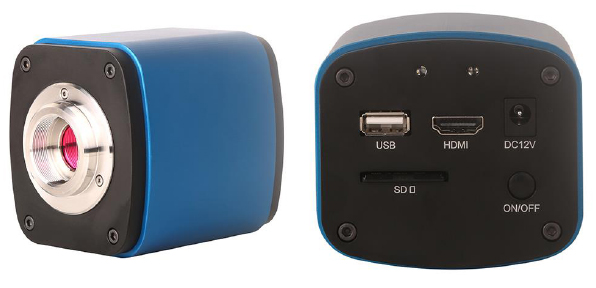

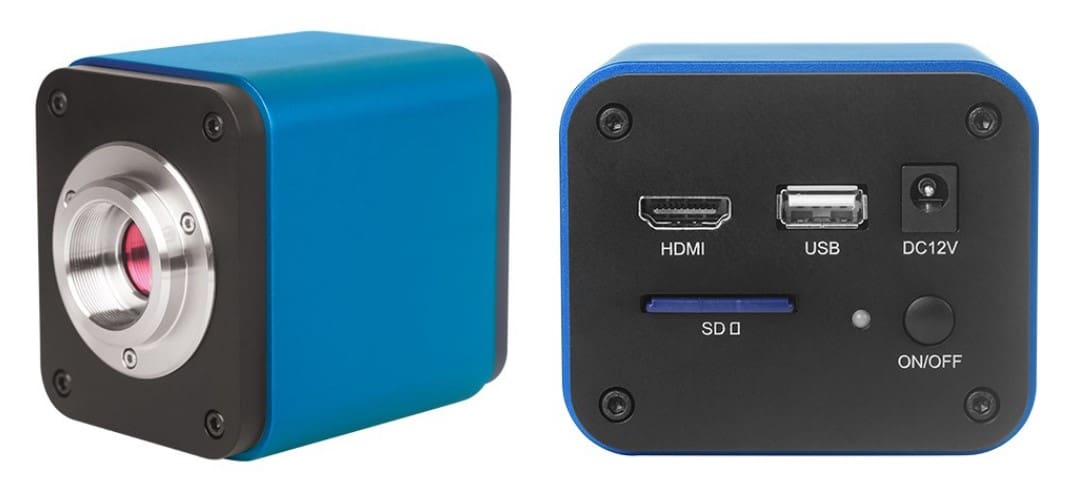

Front View of the XCAM1080PHB/PHD/PHE Camera Back View of the XCAM1080PHB/PHD/PHE Camera
ToupTek Photonics | ToupCam ToupTek Photonics | ToupCam

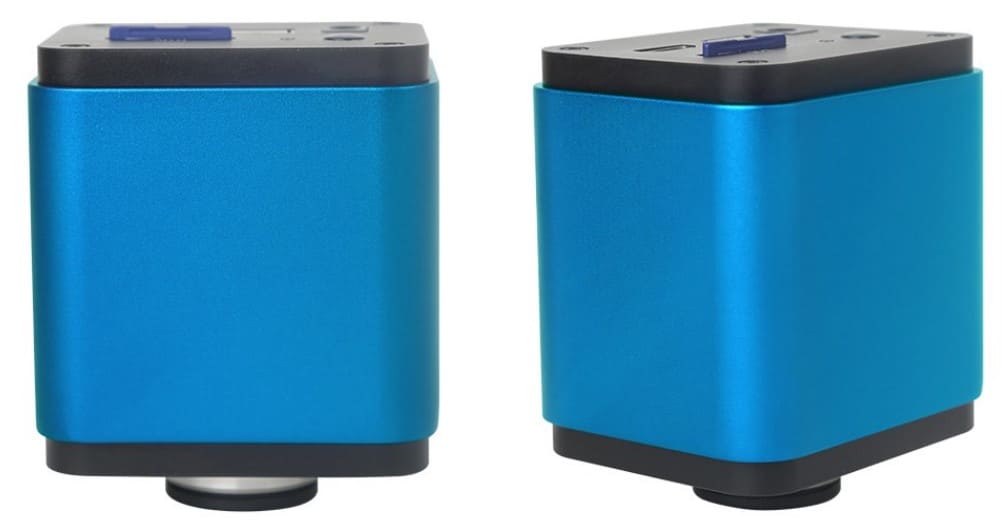

Normal View Side View

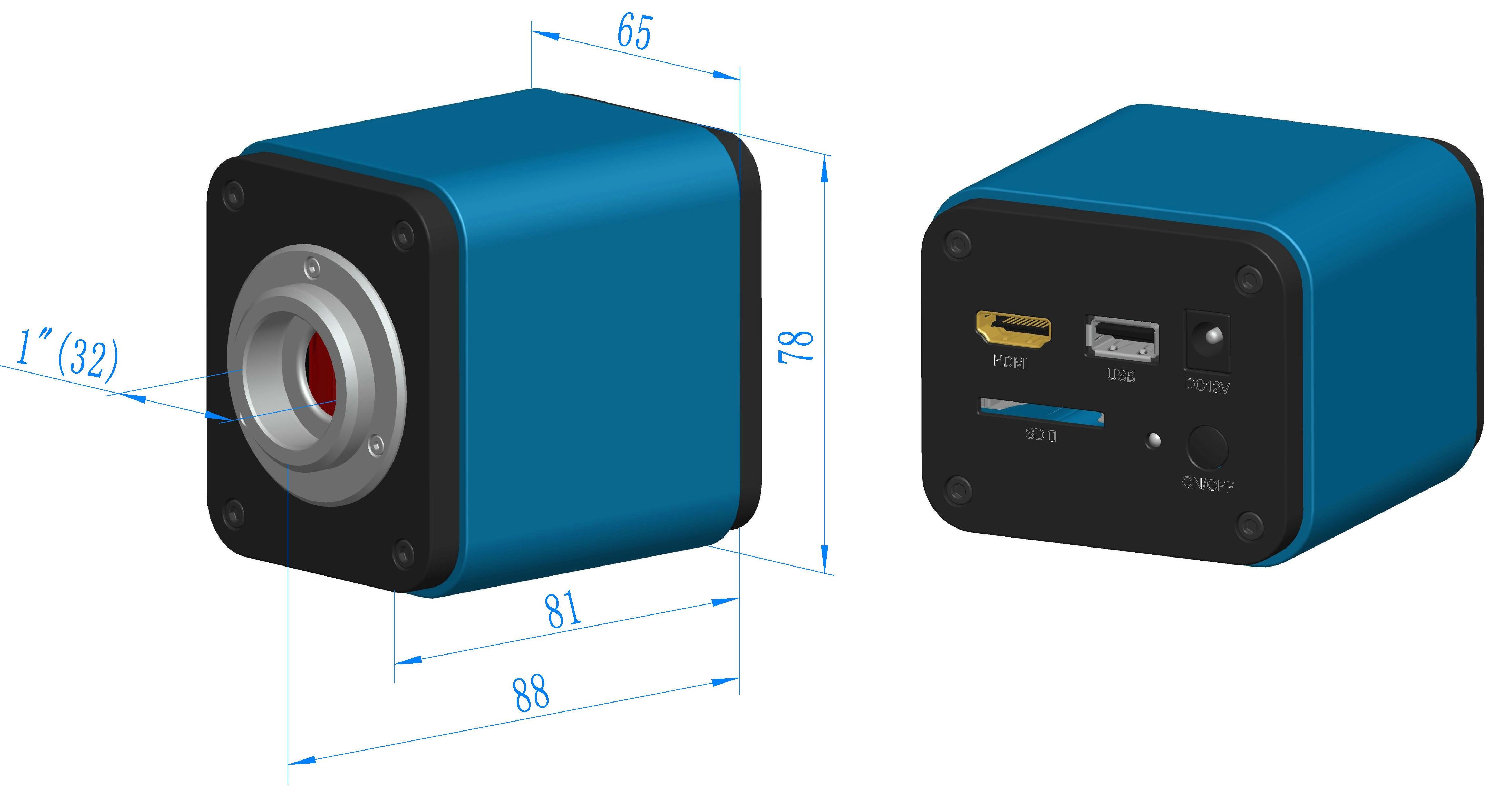

XCAM01080PHB/PHD/PHE C-mount HDMI+WIFI CMOS Camera Dimension

Installation drawings(Click to enlarge). The XCAM01080PHB//XCAM1080PHD HDMI CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure

XCAM1080PHB
XP1080B

1080P/5M/
Sony IMX178(C)
1/1.8"(6.22x4.67)

2.4x2.4

425 mv with 1/30s
0.15 mv with 1/30s

60@1920x1080
(HDMI)
25@1920x1080
(WIFI)

1x1

0.03ms~918ms

XCAM1080PHD
XP1080D

1080P/2M/
Sony IMX185(C)
1/1.9"(7.20x4.05)

3.75x3.75

1120 mv with 1/30s
0.15 mv with 1/30s

60@1920x1080
(HDMI)
25@1920x1080
(WIFI)

1x1

0.06ms~918ms

XCAM1080PHE
XP1080E

1080P/2M/
Sony IMX249(C,GS)
1/1.2"(11.25x6.33)

5.86x5.86

1016 mv with 1/30s
0.15 mv with 1/30s

60@1920x1080
(HDMI)
25@1920x1080
(WIFI)

1x1

0.043ms~1000ms

GS: Global Shutter, C:Color
