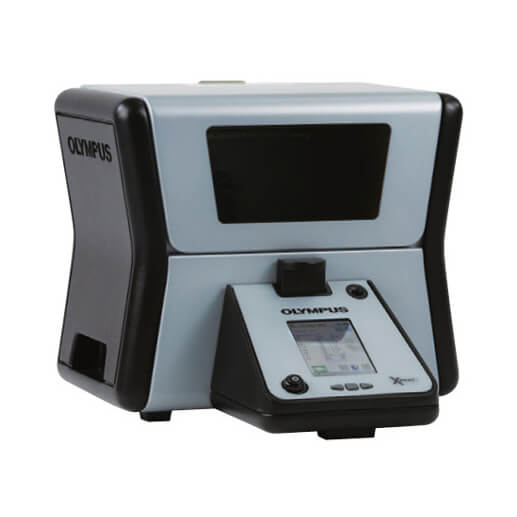

Xpert

The Xpert provides a fast, highly accurate way to determine toxic metals’ levels for quality control purpose. It allows the user to perform an on-the-spot, cost-effective, and completely non-destructive test to check for heavy metals that present in the products.
In addition to Lead, the Xpert provides a high level of performance for other heavy metals of interest. The analyzers come standard with a heavy metals suite that includes Pb, Cr, Hg, Br, Cd, Cl, Ti, Fe, Co, Ni, Cu, Zn, As,Bi, Se, Sn, Sb, Ba, and other elements.

Inquiry

Overview
Specifications

The Xpert for Consumer/RoHS, a convenient, compact & lightweight XRF analyzer for regulatory compliance programs, provides accurate Pass/Fail results within seconds. It is completely independent of an external PC and can be powered by battery for ease of transport to wherever testing is needed.

Dimensions	267 mm x 310 mm x 340 mm (10.5 in. x 12.5 in. 13.4 in.) (with door closed)
Weight	10 kg (22 lbs)
Power Requirements	Provided with 100 VAC to 240 VAC, 50 Hz to 60 Hz, 70 watts power supply
Excitation Source	4 W, 40 kV, 200 µA (max.) X-ray tube Anode: Au or Ta
Detector	Si Drift Detector
Environmental Temp Range	-10 °C to 50 °C (14 °F to 122 °F)
Camera and Collimator	Integrated with measurement geometry; small-spot collimator; selectable diameter sizes (3 mm or 10 mm)
Power	AC power adaptor or rechargeable Li-ion battery
Data Display	55 x 73 mm (2.2 x 2.9 in.) Color LCD touch screen Resolution: 720 x 320
Element Suite	Pb, Cr, Hg, Br, Cd, Cl, Tl, Fe,Co, Ni, Cu, Zn, As, Bi, Se, Sn, Sb, Ba
Standard Accessories	Collimator Test Coin Sample Holder Clip with Articulating Arm USB Cable 316 Stainless STeel Calibration Check Reference Coin Ten (10) spare windows Three (3 styluses) Factory Authorized Training and Support
