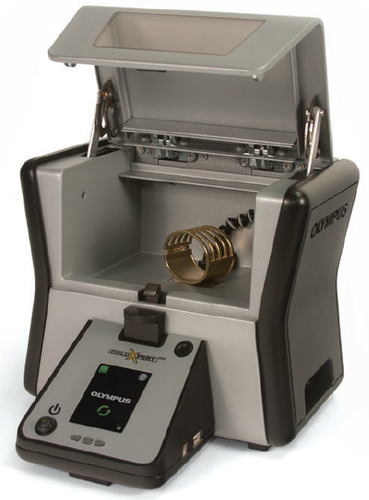

  • GoldXpert0
  • GoldXpert2
  • GoldXpert0
  • GoldXpert2


  • On-the-spot gold karat classification, 0-24 kt.
  • Identification of impurities.
  • Accurate compositional analysis of platinum, silver, and other precious alloys.
  • Verification of gold content in scrap metal.
  • Determination of gold and silver content in coinage.
  • Identifies and analyzes unknown metals for pricing, or even lead screening.
  • Gold plating identification
  • Operates completely independent of a PC
  • Leaded-glass viewing window for easy viewing of a sample in the chamber

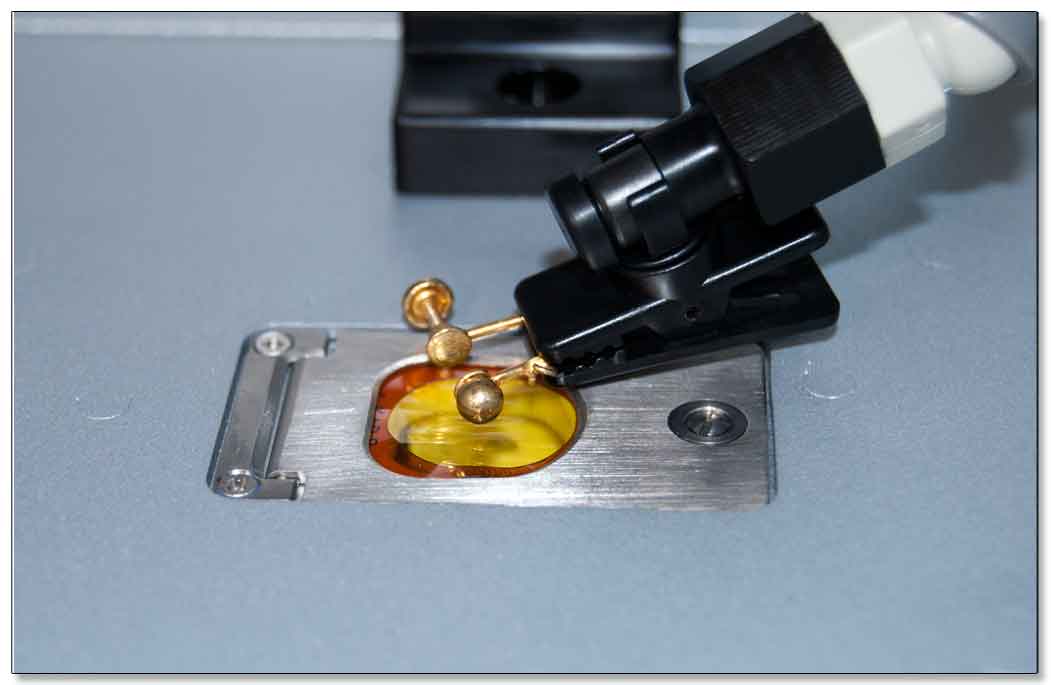

  • Integrated camera indicating sample analysis points
  • Safe, closed-beam XRF system
  • Small spot collimation for analysis; ability to switch between 3 mm and 10 mm diameter spots with a simple tap on the touch screen
  • 4 W X-ray tube, 200 µA current (max), plus optimized beam settings for accurate analysis
  • Small desktop footprint: 267 mm x 310 mm x 340 mm
    (10.5 in. x 12.2 in. x 13.4 in.) (with door closed)
  • LED-lit sample chamber: 125 mm x 210 mm x 180 mm
    (4.9 in. x 8.2 in. x 7.0 in.)
  • Analysis indicator light with 360° visibility
  • Portable operation with optional battery for mobile off-site use
  • USB interface port for high-speed data export, printing, external keyboard and remote control
  • Responsive, bright, color touch screen display
  • Silicon PIN Detector system standard.
  • Silicon Drift Detector system available for optimized precision on trace elements.
