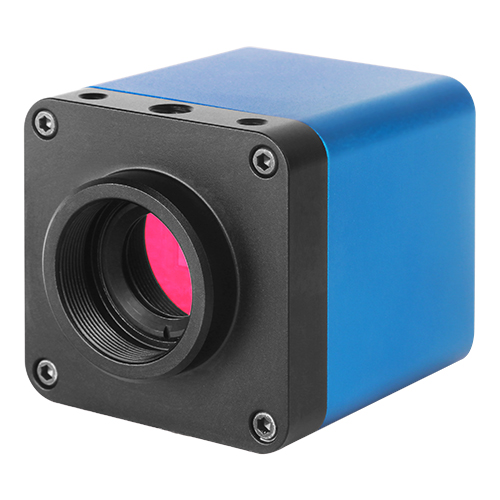

XCAM720 HDMI Camera

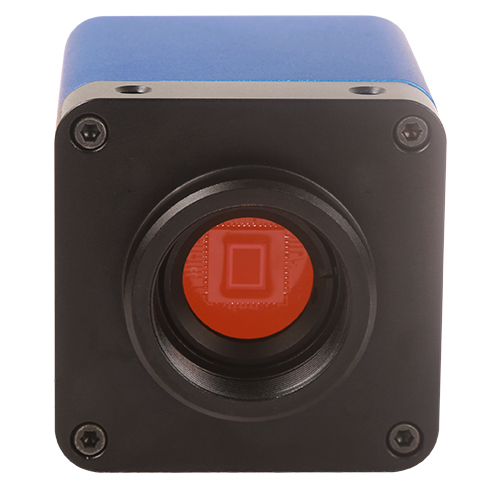

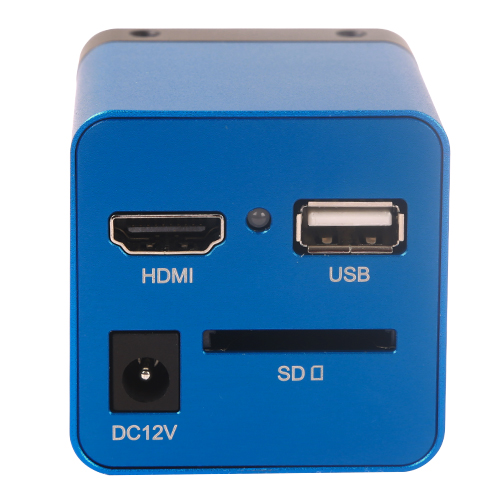

  • Through standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
  • High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
  • 1280 × 720 (720P) resolutions to match the current high-definition displayer on the market.
  • XCAM720KPB/PHC embedded XCamView based on the Qt platform. The camera characteristic can be controlled by the mouse. The other basic processing and choosing can also be realized by the XCamView.
  • For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.





The camera light indicator flashes about 15s after the power on. The camera will load software, and then the system begins to work. Auto exposure and white balance are the default state now.

Order Code Sensor & Size(mm) Pixel G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure
XCAM0720PHB
XP00720B
720P/1.2M/AR0130(C)
1/3" (4.80x2.70)
3.75x3.75 6.5 V/lux-sec
85.3dB
44dB
30@1280x720 1x1 0.21ms~2000ms
XCAM0720PHC
XP00720C
720P/2M/IMX322(C)
1/2.8" (5.78x3.02)
2.8x2.8 510mv with 1/30s (G Sensitivity)
0.15mv with 1/30s (Dark Signal)
30@1280x720
(HDMI)
1920x1080
(Capture)
1x1 0.06ms~1900ms
