USB3.0 CMOS Camera
Detail View →

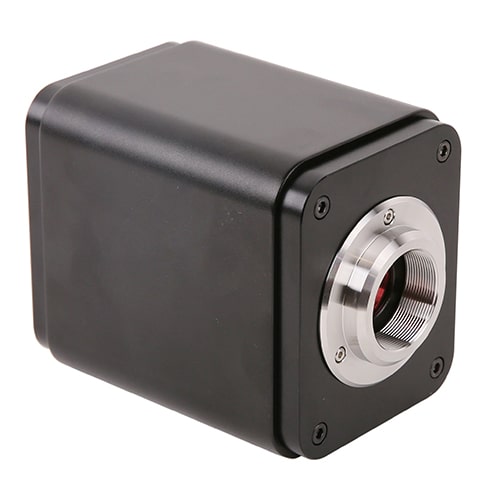

The XCAM4K series camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (LAN) for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.

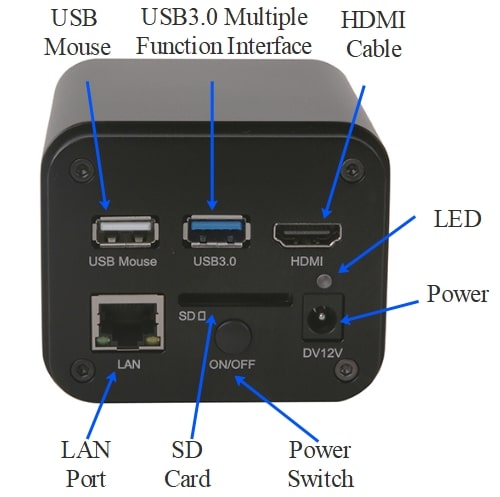

Interface & Button Functions

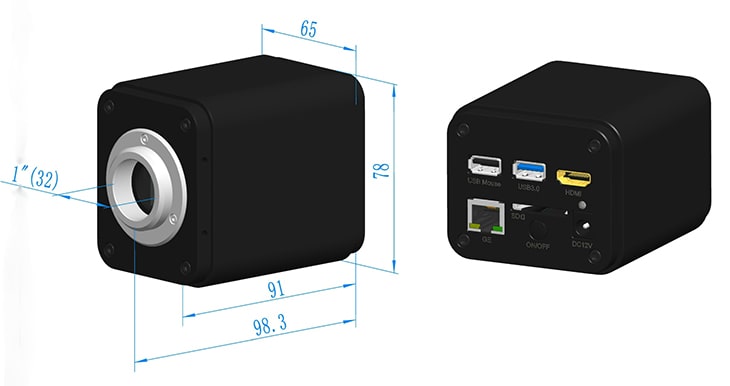

Dimensions XCAM4K
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| XCAM4K8MPA XP4K8MA |
4K/Sony IMX334(C) 1/1.8"(7.68x4.32) |
2.0x2.0 | 505 mv with 1/30s 0.13 mv with 1/30s |
60@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) |
1x1 | 0.04ms~2000ms |
| Other Specification for HDMI Output | |
| UI Operation | With USB Mouse |
| Image Capture | 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk |
| 16M (5440*3060) JPEG Image in SD Card or USB Flash Disk | |
| Video Record | Video Format：8M(3840*2160) H264 Encoded MP4 Format |
| Video Recording Frame Rate：50~60FPS(XCAM4K8MPA), 26~30FPS(XCAM4K16MPA)(related with the SD card speed class and video resolution) | |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar | Including Zoom, Mirror, Comparison(Video~image, image~image, Freeze, Cross, Browser Function |
| Other Specification for GE Output | |
| White Balance | Auto/Manual/ROI White Balance |
| Color Technique | Ultra-Fine Color Engine (USB) |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Video |
| Software Environment (for USB2.0 Connection) | |
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) |
| OSx(Mac OS X) | |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| Ethernet Port: RJ45 Ethernet Port | |
| Display: 19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adaptor |
| Overall Dimensions | |
| Width x Depth x Height | 98.3 mm (3.87”) x 65 mm (2.56”) x 78mm (3.07”) |
| Shipping Weight | 0.47 kg (1.0lbs) |
