QM-Fit
Detail View →
| Measuring range | X | 22.4″ (570mm) |
| Y | 19.6″ (500mm) | |
| Z | 19.6″ (500mm) | |
| Max. Permissible Length Measurement Error (ISO 10360-2: 2009)*2 | 64.4~71.6°F (18~22°C) | (2.2 + 3.0L/1000)μm |
| 50.0~86.0°F (10~30°C) | (2.9 + 4.5L/1000)μm | |
| 50.0~104.0°F (10~40°C) | (3.8 + 8.0L/1000)μm | |
| Drive speed (3D) | 606mm/s in CNC MODE | |
| Drive acceleration (3D) | 2695 mm/s2 | |
| Measuring table capacity | Maximum workpiece height | 25.9″ (660mm) |
| Maximum loading | 264.5 lbs. (120kg) | |
| Mass (includes machine controller) | 1,444 lbs. (655kg) | |
Features
- A guaranteed temperature accuracy range of 10 to 40ºC by combining technologies such as symmetric structure, uniform material and temperature compensation
- Twice the contamination resistance of other conventional CMM’s by implementing the newly developed Mitutoyo absolute scale* that is highly resistant to the challenging production line environment
* Scale that provides an absolute value for each measurement point. This eliminates the need for a machine initialization operation

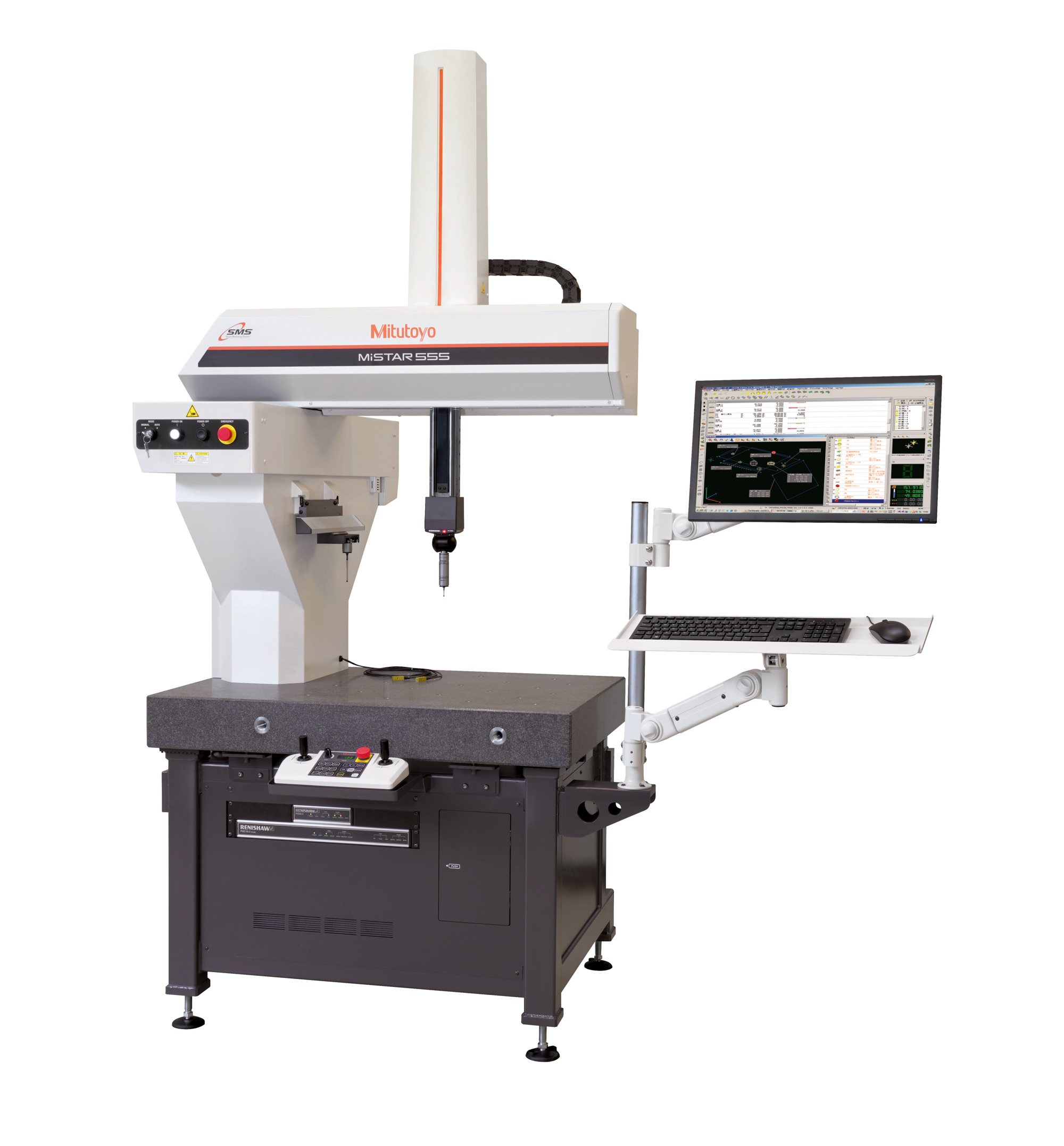

- A single support moving bridge and a storage cabinet for machine controllers under the measuring table to save installation space. This has reduced the footprint to about 70% compared with that of the conventional moving bridge model
- Three-sided open architecture making moving workpieces on and off the measuring table significantly easier and more user friendly, reducing operator’s workload
