  • HCAM0

HCAM

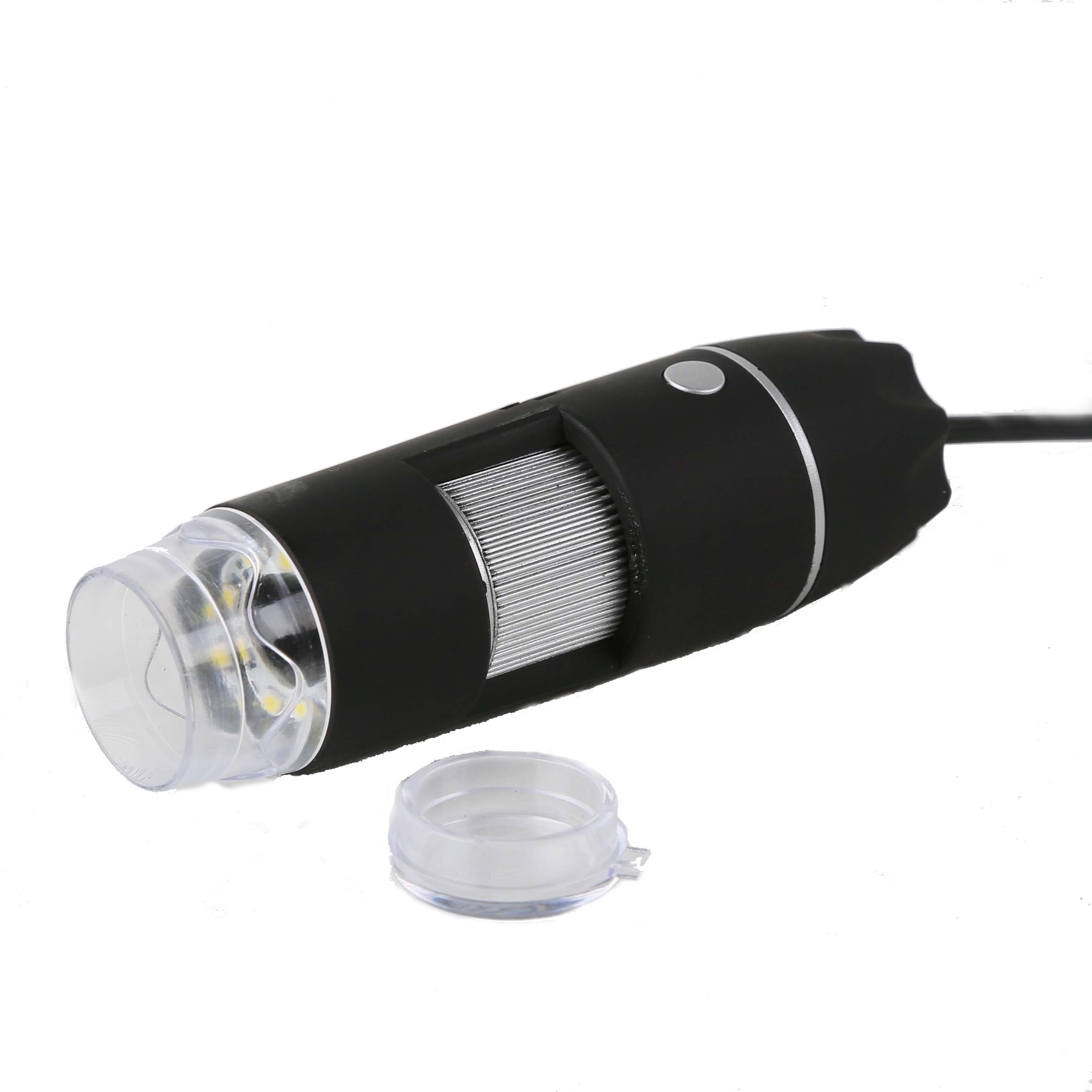

  • USB-powered handheld digital microscope with 10x to 200x magnification
  • Built-in 0.35MP, 1.3MP or 2MP digital camera for capturing images and videos
  • 8 LED ring illuminator
  • Use the included Windows software to capture images and video of your discoveries. Measure your specimens with built-in measurement tool.
  • Computer requirements: CD/DVD drive and USB 2.0 port. UVC plug-and-play with Windows 7/8, Vista, and XP (32/64 bit).

HCAM Series USB2.0 Microscope

Order Code Sensor Sensor Size(mm) Pixel(μm) FPS/Resolution Binning Exposure

HCAM02000KPA
HC502000A

MI2010(C)

1/3.2"

2.8x2.8

30 @ 1920 x1080
(Max Frame Rate)
30@1280x 720
34@640x 480


1x1

0.5ms~30ms

HCAM01300KPA
HC501300A

MT9M112(C)

1/4"

2.8x2.8

15@1280x1024
30@640x480

1x1

0.5ms~30ms

HCAM00350KPA
HC500350A

GC0308(C)

1/6.5"

3.4x3.4

30@640x480

1x1

0.5ms~30ms



HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

Video Format & Frame Rate

Max Frame Rate 30fps @1920 x 1080

Binning

1 x 1

Exposure

0.5ms~30ms, Auto & Manual

White balance

Auto & Manual

Color Rendering Technique

On Chip

Peak Quantum Efficiency

N/A

Readout Noise

N/A

Extinction Ratio

N/A

Smear

N/A

Illumination

LED Illumination

Magnification

10X~200X(with Specified Monitor

Capture/Control API

Directshow, Twain, External Trigger for Snapshot

Recording System

Still Picture and Movie

Holding Frame

Optional

OPERATING ENVIRONMENT

Operating Temperature

-10℃~ 50℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft Windows  XP / Vista / 7 /8 /10(32 & 64 bit)

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM

M-SD-HM2 Hand Held USB Microscope Stand

The track stand (Metal) for handheld microscope with focus mount has the following basic characteristic

  •  Oxidized silver aluminum alloy;
  •  Focus knob inherited from the traditional microscope to focus at ease;
  •  Silicon rubber ring to protect the handheld microscope;
  •  Holding screw to hold the microscope;
  •  Stable to ensure capturing the clear video and image;
  •  Overall dimensions:150mmX80mmX135mm;
  •     Plate dimensions: 150mmX80mm;
  •  Rack focus with 60mm range;
