3.1A CMOS

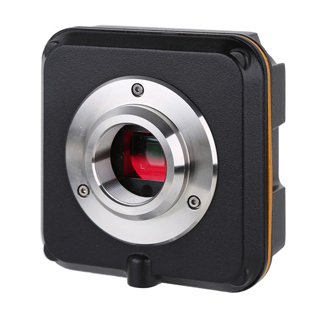

LCMOS Series C-mount USB2.0 CMOS Camera

Standard C-Mount camera with Aptina CMOS sensor;
With hardware resolution among 1.2M to 14M;
On-board memory for perfect synchronization，higher frame rate and stable performance;
High performance cooling structure, ensures low image noise;
USB2.0 interface ensuring high speed data transmission;
Ultra-Fine color engine with perfect color reproduction capability;
With advanced video & image processing application ToupView;
Providing Windows/Linux/OSX multiple platform SDK;
Native C/C++, C#, DirectShow, Twain Control API;

Overview

LCMOS camera is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device， and USB2.0 is used as the data transfer interface.

LCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The LCMOS can be widely used in brightfield environment and microscope image capture and anaysis with moderate speed.

LCMOS03100KPA
LP603100A

3.1M/MT9T001(C)

1/2"(6.55x4.92)

3.2x3.2

1.0 V/lux-sec
61dB
43dB

11.5@2048x1536
32@1024x768
45@680x510

1x1,2x2,3x3

0.244ms~2000ms

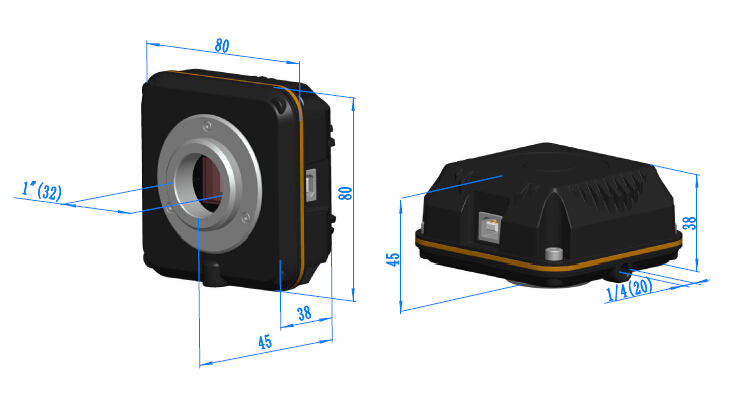

LCMOS Series USB2.0 CMOS Camera Dimension

Installation drawings(Click to enlarge). The LCMOS Series USB2.0 CMOS Camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
