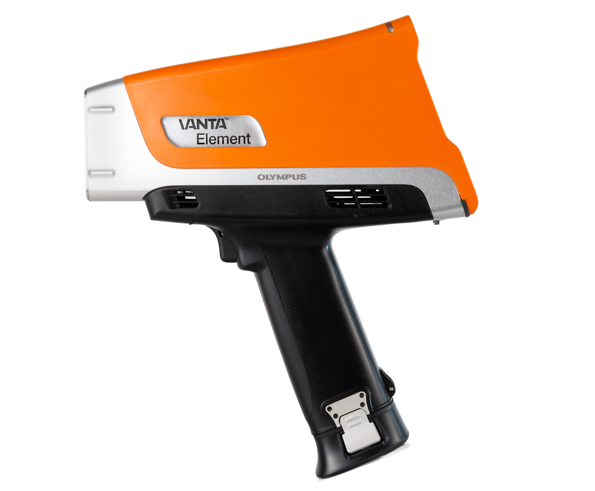

Vanta Element Series

The Vanta Element XRF analyzer series provides elemental analysis for fast alloy grade identification and sorting at an affordable price. The series is available in two cost-effective models:

  • Vanta Element analyzer for affordable alloy ID
  • Vanta Element-S analyzer for affordable alloy ID, including light element detection for magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
  Vanta Element Model Vanta Element-S Model
Use Affordable alloy ID Affordable light element detection
Best for Fast, basic analysis Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Detector  PIN Silicon drift detector (SDD)
Window Thick Kapton® window Prolene® window with Kapton mesh support
Excitation source 2-watt X-ray tube with 35 kV tungsten (W) anode 4-watt X-ray tube with 50kV silver (Ag) anode
  Vanta Element Model Vanta Element-S Model
Dimensions (W x H x D) 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.)
Weight 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source 2-watt X-ray tube with 35 kV tungsten anode 4-watt X-ray tube with 50kV silver (Ag) anode
Primary Beam Filtration Fixed aluminum filter
Detector Silicon PIN detector Silicon drift detector (SDD)
Power Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
Humidity: 10% to 90% relative humidity noncondensing
Drop Test Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter IP54: dust protected and protected against water splashing from all directions
Operating System Linux®
Data Storage microSD™ slot with removable 1 GB Industrial SD card included
USB Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
One USB 2.0 type mini-B port for connection to computer.
Wireless LAN Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor
Bluetooth Supports Bluetooth® with an optional USB adaptor
Warranty One-year warranty
Optional Accessories Field Stand, Soil Foot, and Holster
