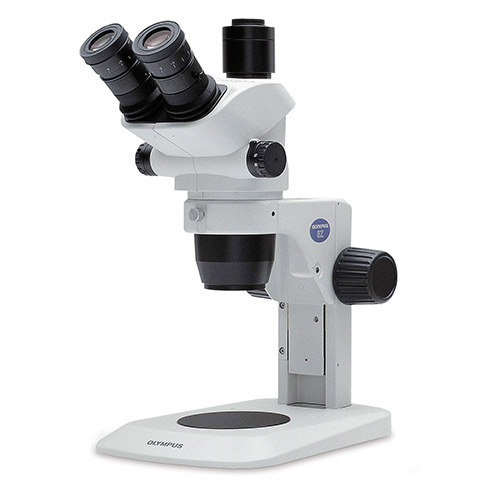

SZ61TR

SZ61TR with C-mount technology which can be attaced with a Camera and exported images via a PC control system.

Optical System		Greenough Optical System
Total Magnification		2.0x-270x [SZ61]*1
Zoom Body	Zoom Ratio	6.7 (0.67x-4.5x) [SZ61]
	AS	–
Observation Tube		Binocular (Tube Inclination Angle 45°/60°)/Trinocular Observation Tube (0.5x Photographic Lens Built-in) [SZ61]
Focus		Stand
Objective Lens	Magnification	Type	N.A.	W.D. (mm)	Total Magnification *2	Field Diameter of View (mm)*2
	0.3x	Auxiliary Objective Lens	0.02 – 0.024	350 – 250	2x – 13.5x [SZ61]	Ø109.5 – Ø16.3 [SZ61]
	0.4x	Auxiliary Objective Lens	0.027 – 0.032	250 – 180	2.7x – 18x [SZ61]	Ø82.1 – Ø12.2 [SZ61]
	0.5x	Auxiliary Objective Lens	0.036	200	3.4x – 22.5x [SZ61]	Ø65.7 – Ø9.8 [SZ61]
	0.62x	Auxiliary Objective Lens	0.042	160	4.2x – 27.9x [SZ61]	Ø53 – Ø7.9 [SZ61]
	0.75x	Auxiliary Objective Lens	0.053	130	5x – 33.8x [SZ61]	Ø43.8 – Ø6.5 [SZ61]
	1x	–	0.071	110	6.7x – 45x [SZ61]	Ø32.8 – Ø4.9 [SZ61]
	1.5x	Auxiliary Objective Lens	0.1	61	10.1x – 67.5x [SZ61]	Ø21.9 – Ø3.3 [SZ61]
	2x	Auxiliary Objective Lens	0.142	38	13.4x – 90x [SZ61]	Ø16.4 – Ø2.4 [SZ61]
Dimensions		194(W)x253(D)x368(H)mm
Weight		3.5 kg (in Standard Combination)`
Remark		1 total magnification range possible by combining an objective lens and eyepiece 2 in the case of using eyepiece 10x
