STM7-LF

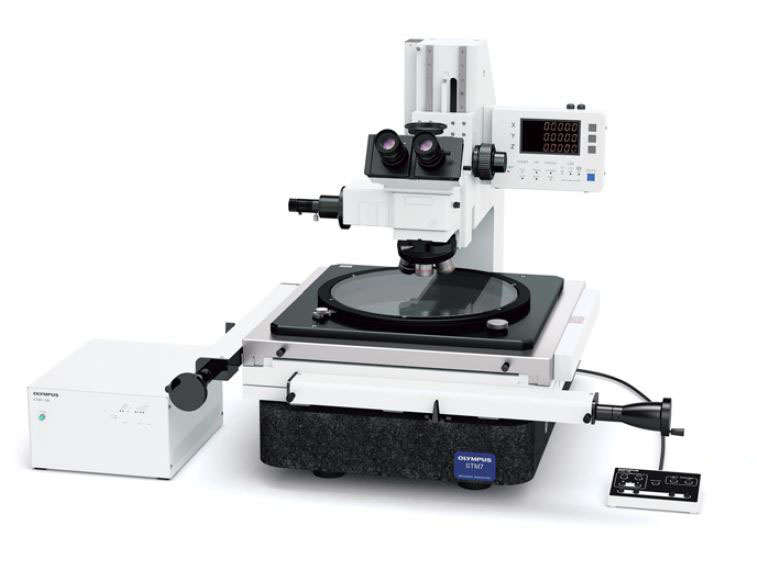

STM7-LF has  the measurement reliability enhanced with stage mounting plate crafted from stone.

Type Measuring Microscope
Model STM-LF
Manufacturer Olympus
Catalogue STM7-LF
Warranty 1 year
Contact 0243.202.3000 or 0964.007.001 (Mrs. Thắm)

Measurement Reliability Enhanced with a StageMounting Plate Crafted from Stone

To provide further assurance of measurement accuracy, the STM7 series uses a highly durable, vibration-resistant frame with a granite surface plate. As a result of this stability, measurements can be taken at sub-micron-levels while ensuring minimal error.

Continuing to Provide User-friendly, High-Precision, 3-axis Measurement as a Pioneer of Height Measurement

As modern manufacturing technology becomes increasingly miniaturized and precise, highly accurate measurements are even more essential—not only along the horizontal XY axes, but also along the Z-axis. Olympus has responded to such needs by being the fi rst to realize an autofocus system for measuring microscopes by means of the refl ective active, confocal method.

Observation Performance Refined through Years of Microscope Development

The STM7 series uses the same UIS2 infi nity-corrected optical system used in state-of-the-art optical microscopes. As a result, observed images have high resolution and high contrast, with aberration thoroughly eliminated to help ensure highly accurate measurement in minute detail.



Manual Z-axis Focusing Models

Simple and Highly-Precise Focusing System with Superior Repeatability

The Olympus’ focus navigator delivers highly reproducible height measurement by projecting a pattern within the fi eld of view and identifying vertical deviations. Slight errors can occur in height measurements taken with normal visual observation, even when focus appears to be sharp. The focus navigator, however, enables measurements to be made simply by matching up the marks thereby reducing operator subjectivity in measurement results.

Specification

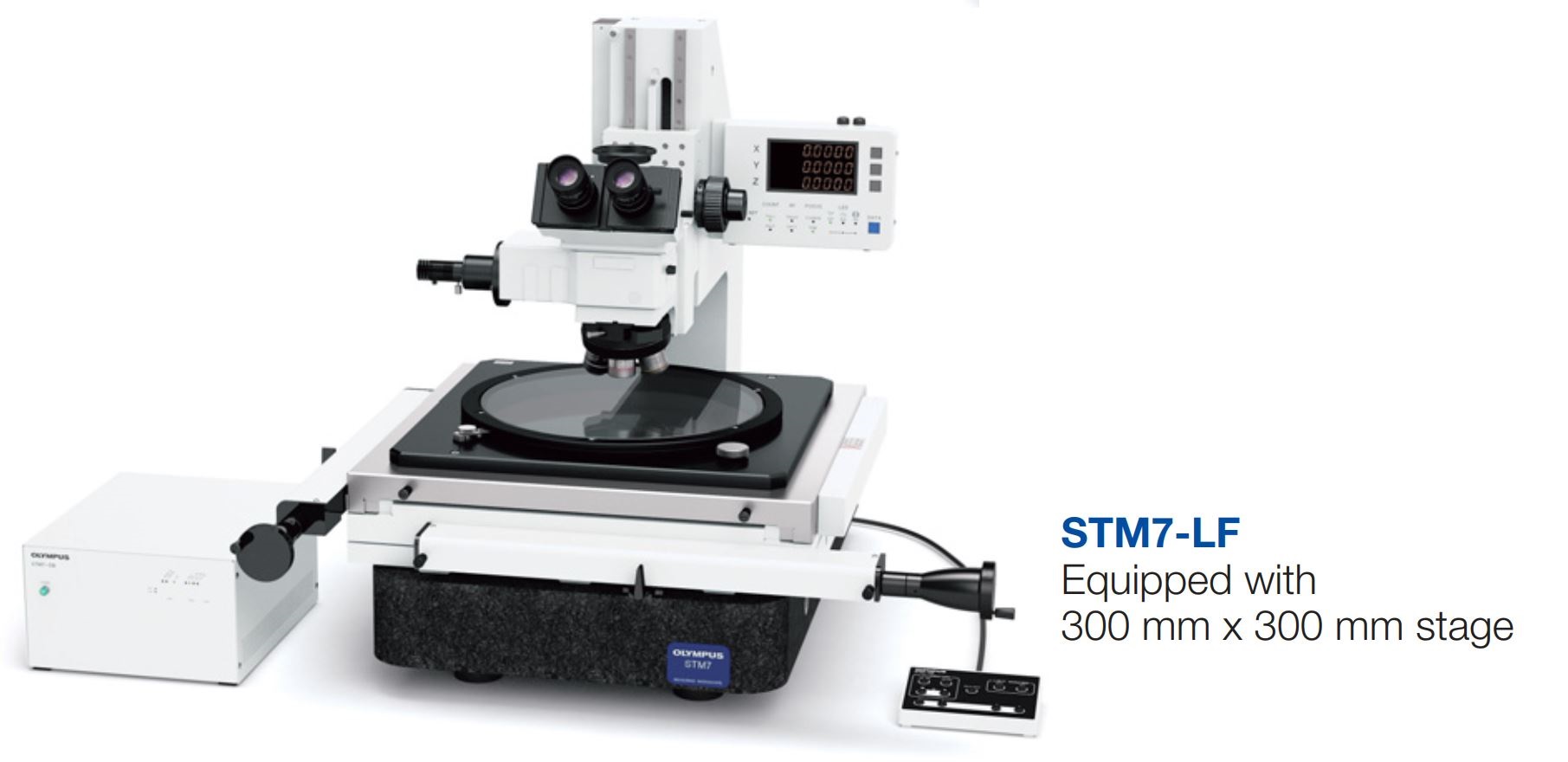

Small manual frame STM7-LF

Microscope

body

Focus

Vertical movement range

145 mm

Maximum measurable height

90 mm (with measurement objective),

145 mm*1 (with metallurgical objective)

Z-axis measurement resolution

0.1 μm

Z-axis drive method

Manual

coaxial fine/coarse

focusing knobs

Illumination

LED illumination

White: for reflected light illumination, green: for transmitted light illumination

Observation tube

Erect image monocular tube, erect image trinocular tube (100:0/0:100)

Objective

For measuring

microscope

MM6-OB series

For metallurgical

microscope

MPLFLN series, LMPLFLN series, MPLFLN-BD series, LMPLFLN-BD series

Eyepiece

MM6-OCC10X (with cross hairs, FN 22), MM6-OC10X (FN 22)

Stage

Measuring range

STM7-CS300:

X-axis 300 mm, Y-axis 300 mm

Measurement

accuracy

(L: measuring

length)

(3+6L/300) μm

Accuracy

assurance weight

15 kg

Counter display

Number of axes

Three

Unit

mm/μm/inch/mil

Minimum resolution

0.1 μm

Dimensions (W x D x H) (mm)

804 x 1024 x 686

Weight

277 kg (Approx.)

Power consumption

100-120/220-240V ~ 50/60Hz

0.3A/0.2A

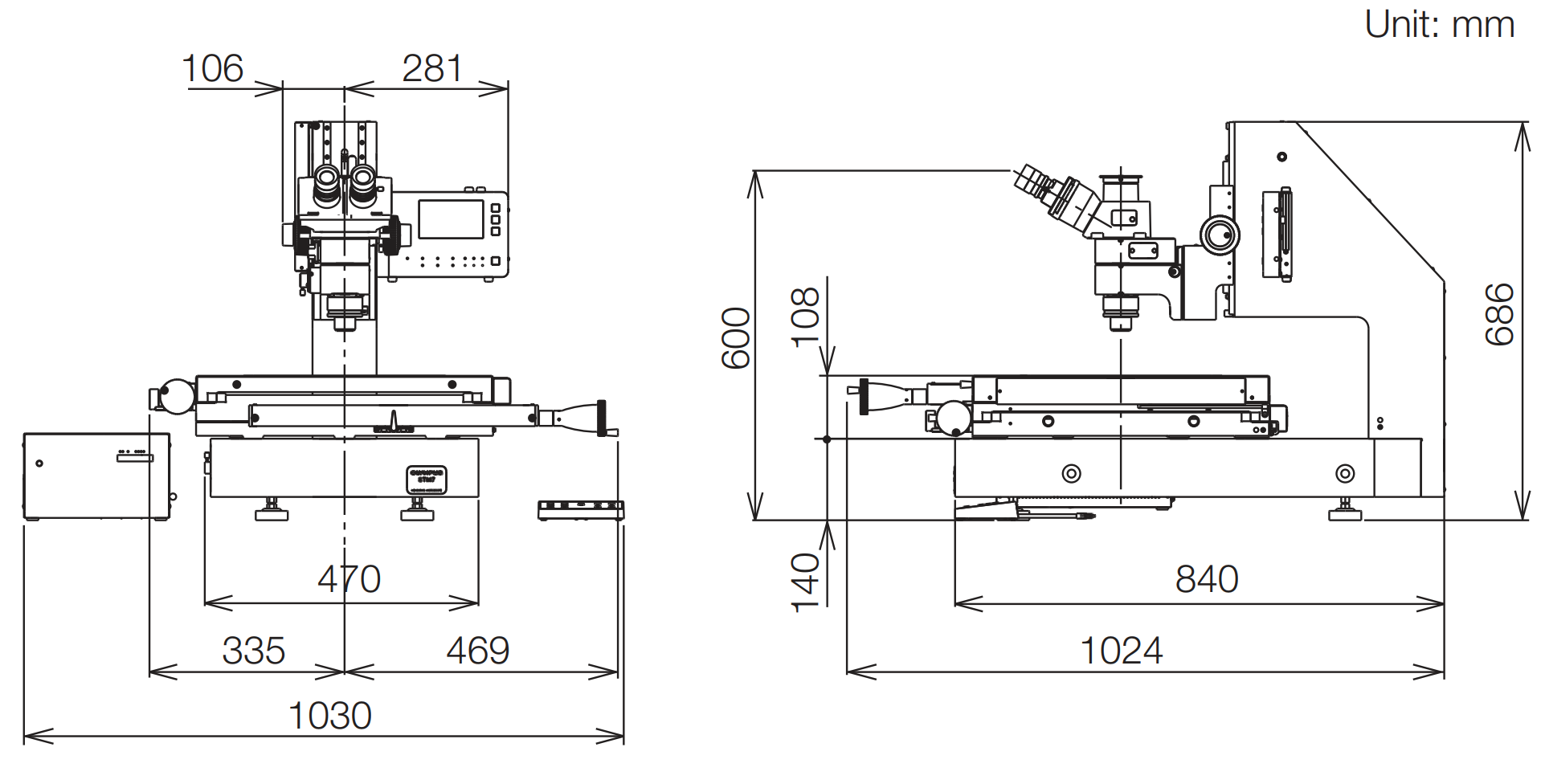

Dimensions
