정밀건식세정기 EDS-PD
Detail View →

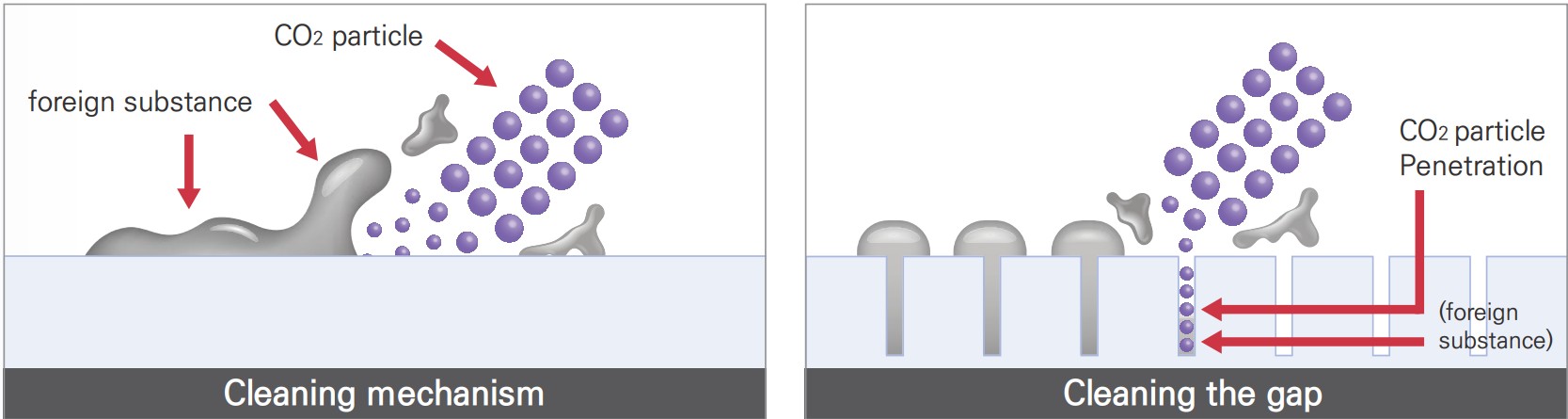

Cleaning principle
Spray
In a dry ice cleaner, air at high pressure (low pressure) CO2 particle sprayed at high speed collide with the surface of the object to be cleaned.
Therma shock
The particle freezes the foreign substances of the object to be washed rapidly at ultra-low (78.5℃), and the foreign substances shrink due to the difference in ambient temperature, causing numerous cracks.
Expansion
The CO2 particle penetrates between the foreign materials through the cracks and simultaneously sublimates, and expands in volume by more than 800 times to lift only the foreign materials upward.
Wash separatel
Foreign substances frozen at ultra-low temperatures are easily separated from the surface by the wind pressure of the cleaner.
Advantages
Optimal design
User convenience
Excellent durability
Low noise
Adjustable cleaning power
Self cleaning function
Applies to: Precision cleaning automation, long-term continuous cleaning, PCB cleaning, deburring, and electrical and electronic applications
Specification
| S i z e | 690 X 540 X 1000 (L X W X H) (without handle) |
| W e i g h t | 160kg |
| Hopper capacity | 20kg (There is a difference from the appropriate amount) |
| Pellet consumption | 0 ~ 200g/min (Fine adjustment possible), average 100g/min |
| Air consumption | 0.5 cubic meter |
| Accessory | 1 nozzle, blasting hose & gun (automatic or manual selection 1) |
| Used air pressure | 4~5bar (max 10bar) |
| Mechanism part material | SUS or AL |
| Control method | PLC control, contact output, external control mode available |
| Electrical Specifications | 220V, 60Hz/50Hz, 3A |
| Particle size control range | 0.05~2mm(stepless control) |
