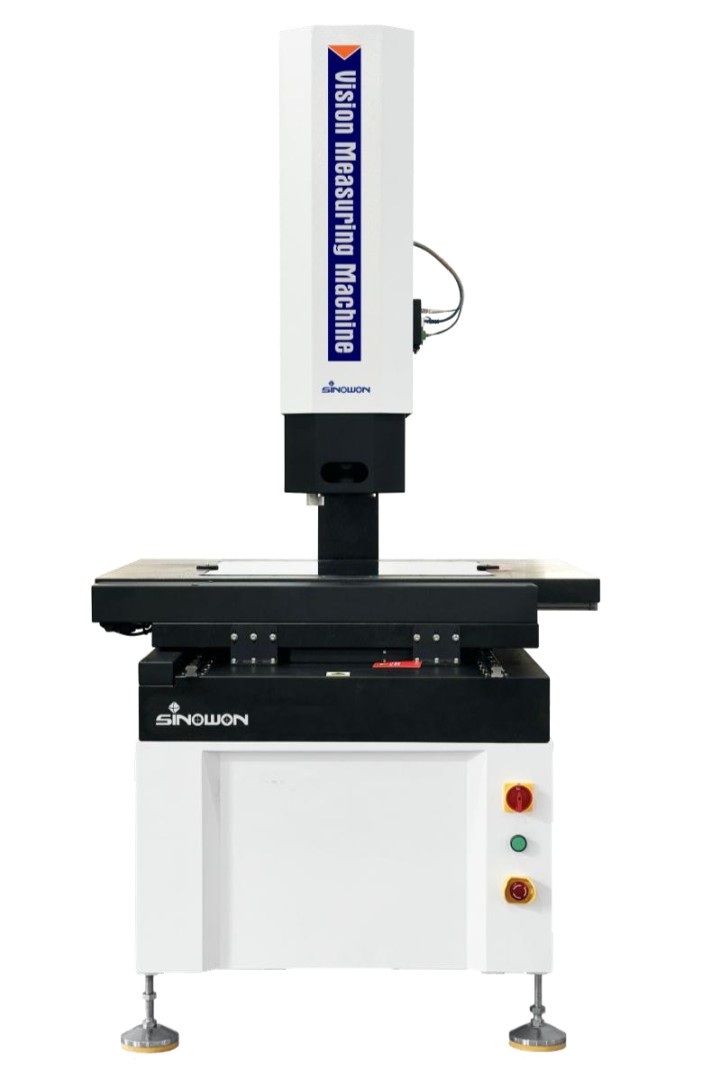

AutoVision Series (Bridge Automatic VMM)
Detail View →
Product Characteristic
- XYZ three-axis CNC automatic precision control, precise positioning
- Granite base and pillar, good stability
- Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the
motion system
- 0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system
- High-resolution digital camera to meet the needs of clear observation and precise measurement
- 6.5X high-definition optical lens, accurate zoom, one-time pixel correction；
- Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently
realize 256-level brightness adjustment;
- The automatic Vision measurement software iMeasuring with powerful functions and easy to operate.
Speccification
| Commodity | Cantilever Automatic Vision Measuring Machine VIM Series | ||
| Model | VIM432 / V5-432 | VIM542 / V5-432 | VIM652 / V5-652 |
| X/Y Axis Travel | (400*300)mm | (500*400)mm | (600*500)mm |
| Z Axis Travel | 200mm | ||
| X/Y/Z 3 Axis Linear Scale（mm） | Glass Linear Scale Resolution: 0.5um | ||
| Guidance Mode | High-precision Linear Guide, Double-track Double Slider Guide | ||
| Operation Mode | Joystick Controller, Mouse Operation, Automatic Detection Program | ||
| Accuracy* | XY Axis： ≤2.0+L/200(um) Z Axis： ≤5.0+L/200(um) |
||
| Repeatability | 2um | ||
| Illumination System |
Contour LED Parallel Contour Illumination | ||
| Surface : 0~255 Stepless Adjustable 5-ring 8-division LED Surface Illumination | |||
| Video System** | 1/2.9" High Resolution Digital Camera 6.5X Electronic Feedback Zoom Lens Zoom745EF, Optical Magnification： 0.7X-4.5X， Video Magnification： 28X~180X |
||
| Measuring Software | iMeasuring | ||
| Operation System | Support WIN 10/11-32/64 Operating System | ||
| Language | English, Simplified Chinese, Traditional Chinese, Optional other language versions | ||
| Working Environment | Temperature 20℃±2℃, temperature change <1℃/Hr; Humidity 30%~80%RH; Vibration <0.02 g's, ≤15Hz. |
||
| Power Supply | 220V/50Hz/10A | ||
| Load Capacity | 30Kg | ||
| Dimension(WxDxH) | (1033*820*1685)mm | (1213*940*1705)mm | (1453*1120*1725)mm |
| Net Weight | 466Kg | 560Kg | 793Kg |
