AutoVision Series (Bridge Automatic VMM)
Detail View →

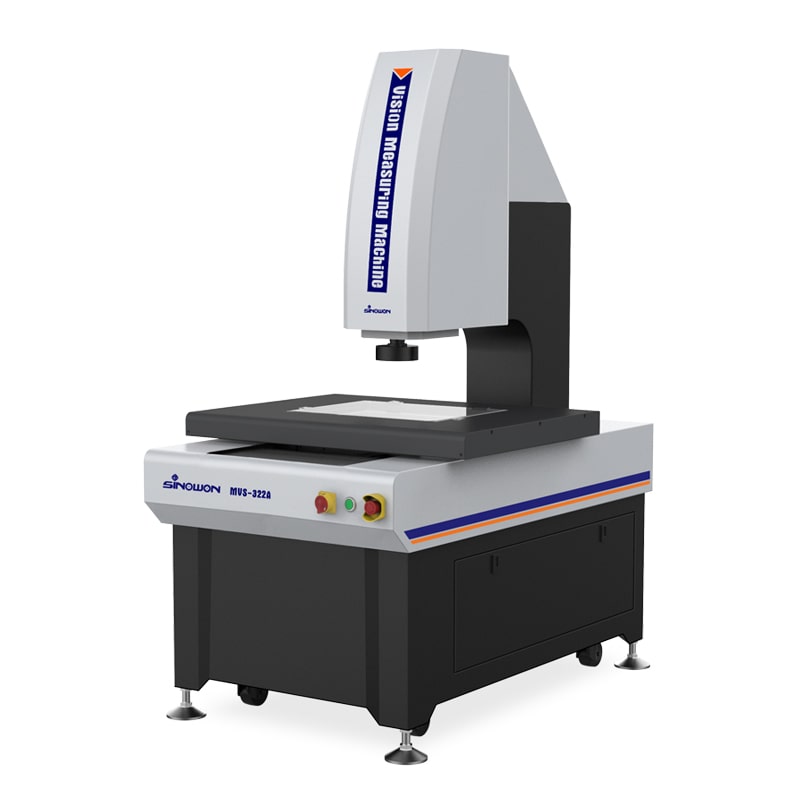

MVS series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.
Product Characteristics
◆ XYZ three axis CNC automatic control and accurate positioning;
◆ Granite base and column, excellent stability;
◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
◆ 0.5 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
◆ High resolution digital camera to meet the needs of clear observation and accurate measurement;
◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;

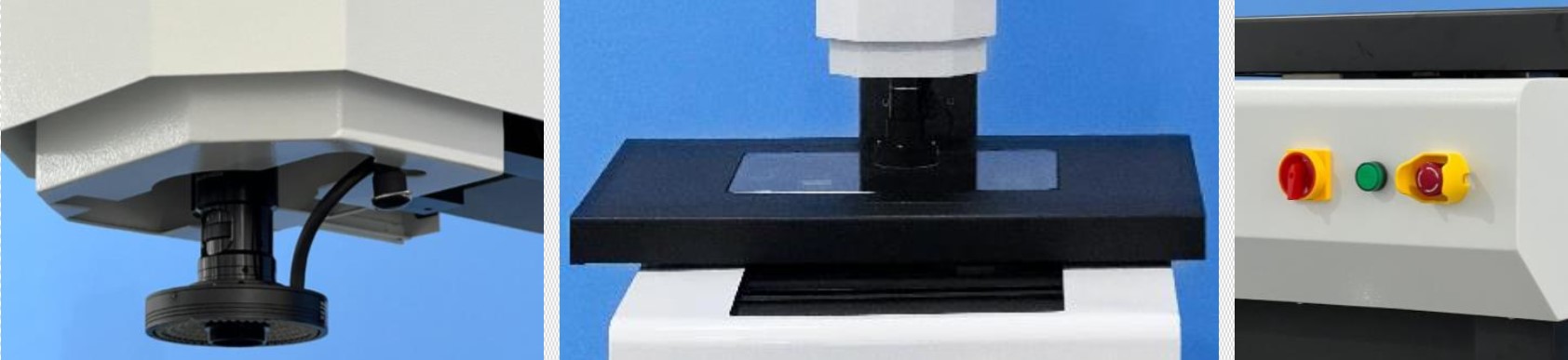

◆ With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;
◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;
◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.
Specification
| High Precision Cantilever Automatic Vision Measuring Machine MVS Series | |||
| Model | MVS-322 | MVS-432 | MVS-542 |
| X/Y Axis Travel | (300*200)mm | (400*300)mm | (500*400)mm |
| Z Axis Travel | 200mm | ||
| X/Y/Z axis Linear Sca le | European Linear Scale Resolution: 0.5um | ||
| Guidance Mode | P-Class Precision linear guide, double-track double slider guide. | ||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||
| Accuracy* | XY Axis： ≤2.0+L/200(um) Z Axis： ≤5.0+L/200(um) |
||
| Repeatability | 2um | ||
| Illuminatio nSystem | LED parallel contour illumination 0~255 Stepless adjustable 5-ring 8-division LED surface illumination |
||
| Video System** | 1/2.9"/1.6Mpixel High Resolution Digital Camera 8.3X Manual Electronic Feedback Lens； Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5” monitor) |
||
| Measuring Software | iMeasuring | ||
| Operating System | Support WIN10/11-32/64 bit operating system | ||
| Language | English, Simplified Chinese, traditional Chinese, other languages can be added | ||
| Working Environment | Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz. | ||
| Power Supply | AC220V/50Hz; 110V/60Hz | ||
| Load Capacity | 25Kg~50Kg | ||
| Dimension(WxDxH) | (1146*720*1664)mm | (1331*840*1664)mm | (1257*920*1640)mm |
| Packing Size(WxDxH) | (1290*970*1920)mm | (1390*1060*1940)mm | (1450*1170*1900)mm |
| Net Weight | 380Kg | 450Kg | 600Kg |
