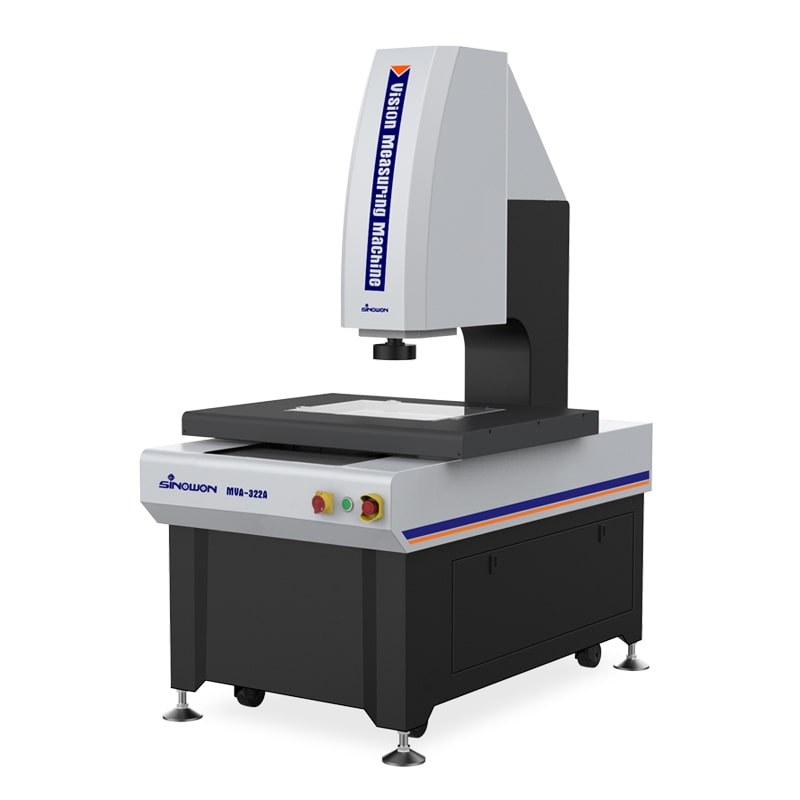

MVA Series (Ultra High Precition Automatic VMM)

MVA series is a cantilevered high accuracy fully automatic vision measuring machine developed for GD&T measurement, with three axis automatic control. It equipped with Automatic focusing, automatic lighting control, optimization of hardware and software configuration to achieve the measurement of linear and geometrical dimensions.

Product Characteristics

◆ XYZ three axis CNC automatic control and accurate positioning;

◆ Granite base and column, good stability;

◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;

◆ Imported 0.5 um high precision linear scale to ensure the positioning accuracy and measurement accuracy of the system;

◆ High resolution digital camera to meet the needs of clear observation and accurate measurement;

◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;

◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;

◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.

Technical Specification
