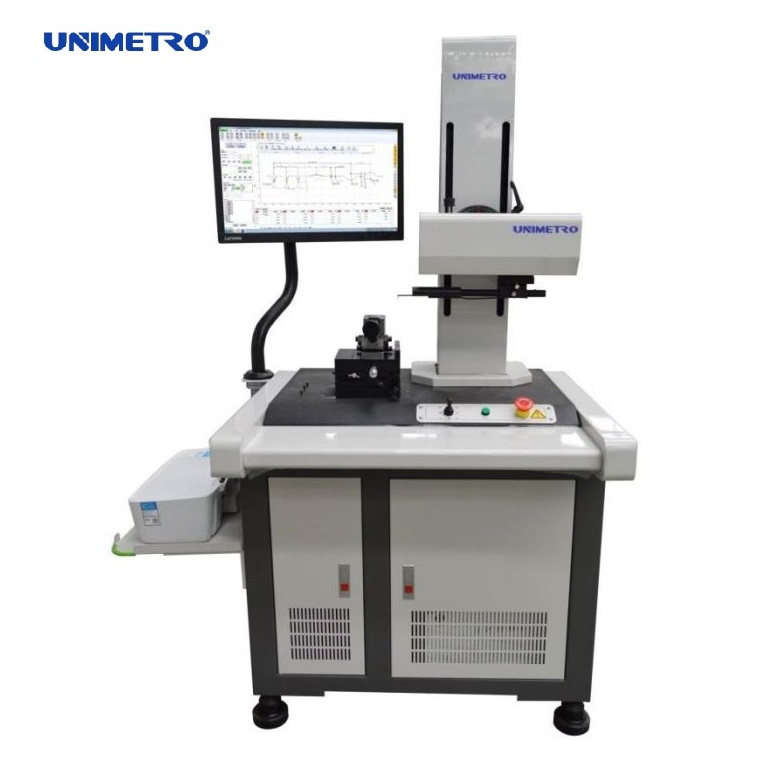

Contour Measuring Machine XY1000

The best balance between performance and cost, with the best cost performance.

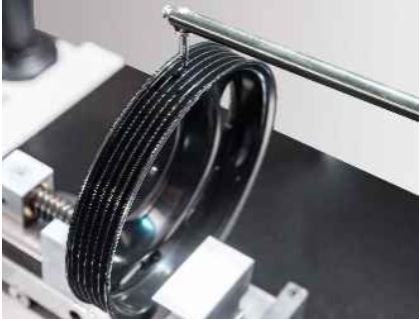

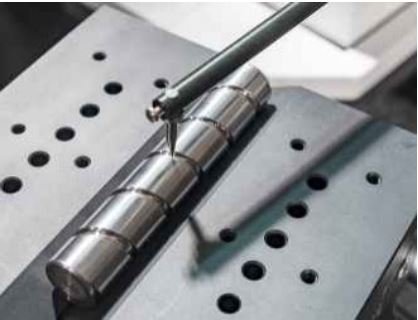

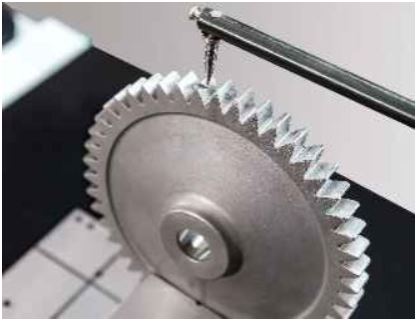

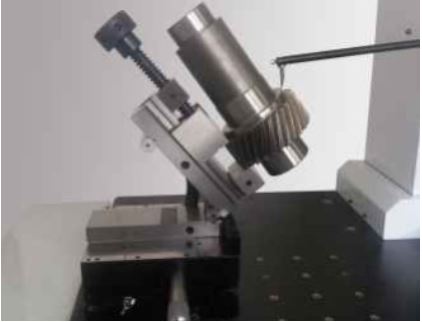

Measuring principle:

The measuring principle of the instrument is rectangular coordinate measuring method, that is, through xaxis and Z1 axis sensors, the coordinate points of the surface profile of the measured parts are mapped out.
Through the electrical components, the coordinate points measured by the sensor are transmitted to the upper PC. the software performs mathematical operation on the collected original coordinate data and marks the required engineering measurement items.

Dimensions: including horizontal distance, vertical distance, linear distance, radius and diameter
Included angle: including horizontal angle, vertical angle and included angle
Position tolerance: including parallelism and perpendicularity
Shape tolerance: including straightness, convexity and arc profile
Auxiliary generation: including auxiliary points, auxiliary lines and auxiliary circles

Measuring Range	Driver	100 mm / 0.2μm
	Sensor	15 mm / 0.05μm
	Column	320 mm
Machine Size	Lx	1,450 mm
	Ly	700 mm
	Lz	1,850 mm
	Weight	320 kg
Technical specifications	Linear accuracy	±（1.5+\|0.2H\|）μm
	arc	±（2+R/8）μm
	Angle	±2ʹ
	Straightness	0.8 μm / 100 mm
Environmental requirements	Maximum ground vibration RMS	< 50 Hz 2.5 μ M / S / > 50 Hz 5.0 μ M / S
	Power supply	AC 220 V ± 5% 50 Hz single ground wire
	Power demand	500W
	Temperature	12 ～ 26 ℃, ideal temperature: 20 ± 2 ℃
	Relative humidity	< 85%
Single Section Probe	Diameter	4mm
	Length	32mm
	Angle	17 degrees
